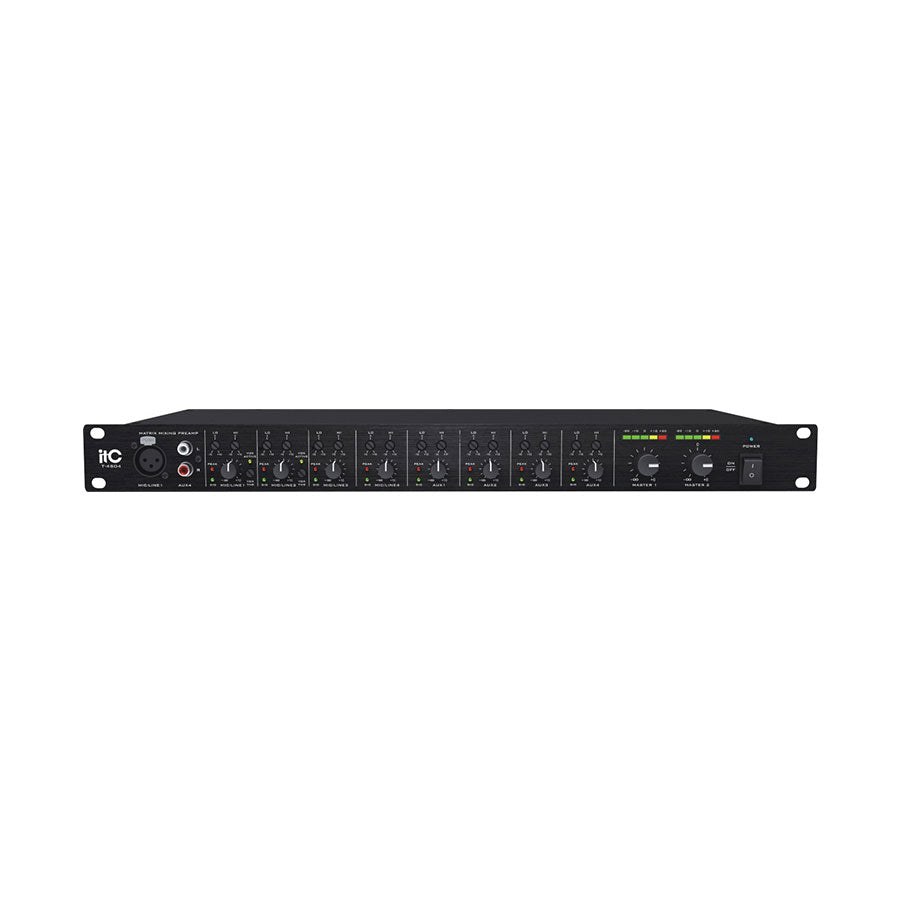

Stereo Mixer Pre-Amp, 8 inputs & 4 XLR balanced outputs (4 mic/line XLR balanced inputs with 48V power switch + 4 Aux unbalanced inputs, each channel with volume and tone control)
Stereo Mixer Pre-Amp, 8 inputs & 4 XLR balanced outputs (4 mic/line XLR balanced inputs with 48V power switch + 4 Aux unbalanced inputs, each channel with volume and tone control)
Description
Specifications
Features:
* Standard machine cabinet type 1 U height design, black aluminuim oxide draw bench panel.
* 4 MIC/LINE XLR balanced inputs, providing 48V phantom power switch.
* 4 AUX accessory unbalanced inputs, there are 2 RCA in each channel, and one of them is on the panel.
* Each channel is equipped with volume control and tone control.
* Signal/peak value LED light monitors the input level of every channel.
* MIC/LINE1,MIC/LINE2 internally installed low cut.
* Each input channel can be assigned to output channel freely through jumper.
* The panel provides one channel of MIC/LINE input in addition,
parallel connected with MIC/LINE1.
* MIC1/MIC2 priority control, and adjustable threshold value.
* 4 XLR balanced outputs, in parallel connection with 2 channels of RCA
unbalanced outputs.
* 4 RJ45 bus balanced inputs, whose volume is adjustable, and can be mixed correspondingly into 4 channel XLR outputs.
* 4s of RJ45 bus balanced outputs mixed signal.
* Output level indicate.
* External mute controls for all channels.
* Switching power supply provides electricity.
Specifications:
Model | T-4S04 |
Input Sensitivity/Impedance |
|
1-4MIC/ Line | ±2.5mV/5KΩ balanced, ±250mV/5KΩ balanced |
1-4AUX RCA In | 400mV/5KΩ unbalanced |
Output Level/Impedance |
|
Master 1, 2,3,4 | 1V/600Ω balance (MAX:±7.75V) |
AUX | 1V/10KΩ unbalanced (MAX:7.75V) |
Tone | Bass: ±15dB at 100Hz, Treble: ±15dB at 10KHz |
Low Cut | 200Hz / 12dB per octave slope |
Frequency Response |
|
Less Than |
|
S/N Ratio | -1dB (20Hz~20KHz) |
MIC |
|
Line | > 60dB |
THD | > 75dB |
MIC |
|
Line | < 0.05% |
Cross-talk | > 0.03% |
MIC | > 60dB |
Line | > 75dB |
Power Consumption Power | 20W |
Power Supply | ~110V-230V 50/60Hz |
Dimensions | 484 x 209 x 44mm |
