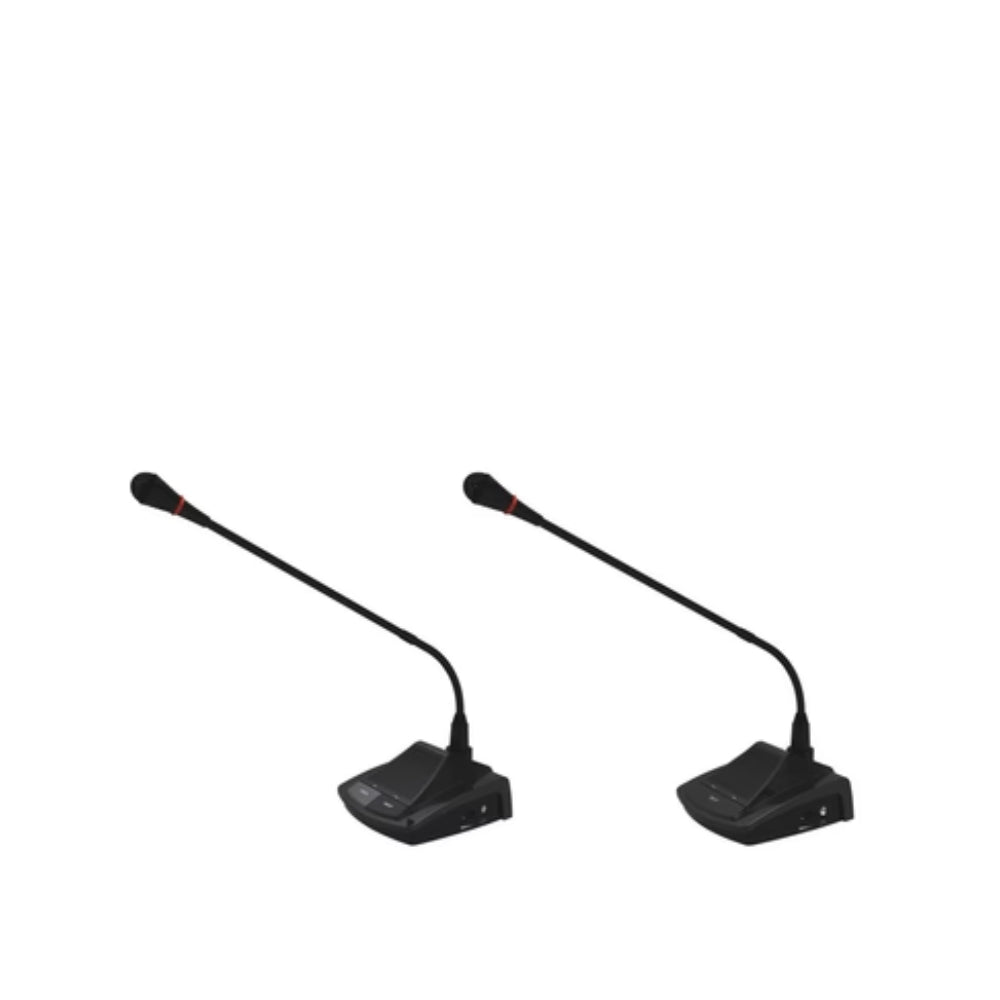

Discussion Delegate Unit

https://live-linkserve.odoo.com/web/image/product.template/58494/image_1920?unique=94bb699
(0 review)

Discussion Delegate Unit

3,895.00 MVR 3895.0 MVR 3,895.00 MVR GST Included

3,606.48 MVR GST Included

Not Available For Sale

    This combination does not exist.

    ADD TO CART ADD TO QUOTE
    BUY NOW

    Description

    Specifications

    Features

    * With new digital design.

    * With ring-shaped speech indicator light that can show the state of speech. Red light stands for in a speech, green light stands for waiting for a speech.

    * The special designed microphone shield can eliminate the "poop-poop" low frequency sound even without using the windproof cotton cover.

    * The chairman is unrestricted by microphone modes and number of speakers.

    * The chairman unit has full-control priority and can be placed in any position of the loop. The units adopt hand-in-hand cascade connection mode, convenient for installation and maintenance.

    * The reelable condenser microphone pole and professional large heart-shaped condenser microphones core make the unit a high sensitivity and intelligibility of the speech.

    * The microphone has high and adjustable sensitivity.

    * The power of the units is supplied by system host at 24V safe voltage.

    * The units are connected by T- shaped 8-core cable.

    * With two groups of 3.5mm stereo sound output socket, can be used for record and earphone connection.

    * Built-in hi-fi speaker and volume control; with feedback inhibition function. The built-in hi-fi speaker will shut off automatically when the microphone is turned on.

    * With discussion/automatic video-tracking function.


    Specifications

    Model


    TS-0602A

    Microphone Type


    Heart shaped projection electrets microphone

    Frequency Response

    80Hz~16KHz

    Mic Input Impedance

    1KΩ

    Sensitivity

    -46 dBV/Pa

    Max SPL

    100dB(THD>3%)

    S/N Ratio

    >80dB

    Crosstalk

    >70dB

    Dynamic Range

    >80dB

    THD

    <0.1%

    Max Power Consumption

    >2W

    Earphone Load

    8-32Ω

    Earphone Volume


    40mW maximum

    Earphone Jack

    3.5mm mono jack

    Standard

    IEC60914

    Connector

    Built-in 1.8m aviation plug (8 core)

    Hand-in-hand Extension Port

    Provided

    Power Supply Mode

    DC24V supplied by the host

    Color

    Black

    Weight

    0.86Kg

    Mic Tube Length

    415mm

    Dimension

    144 x 128 x 62mm

    Installation Way

    Desktop
