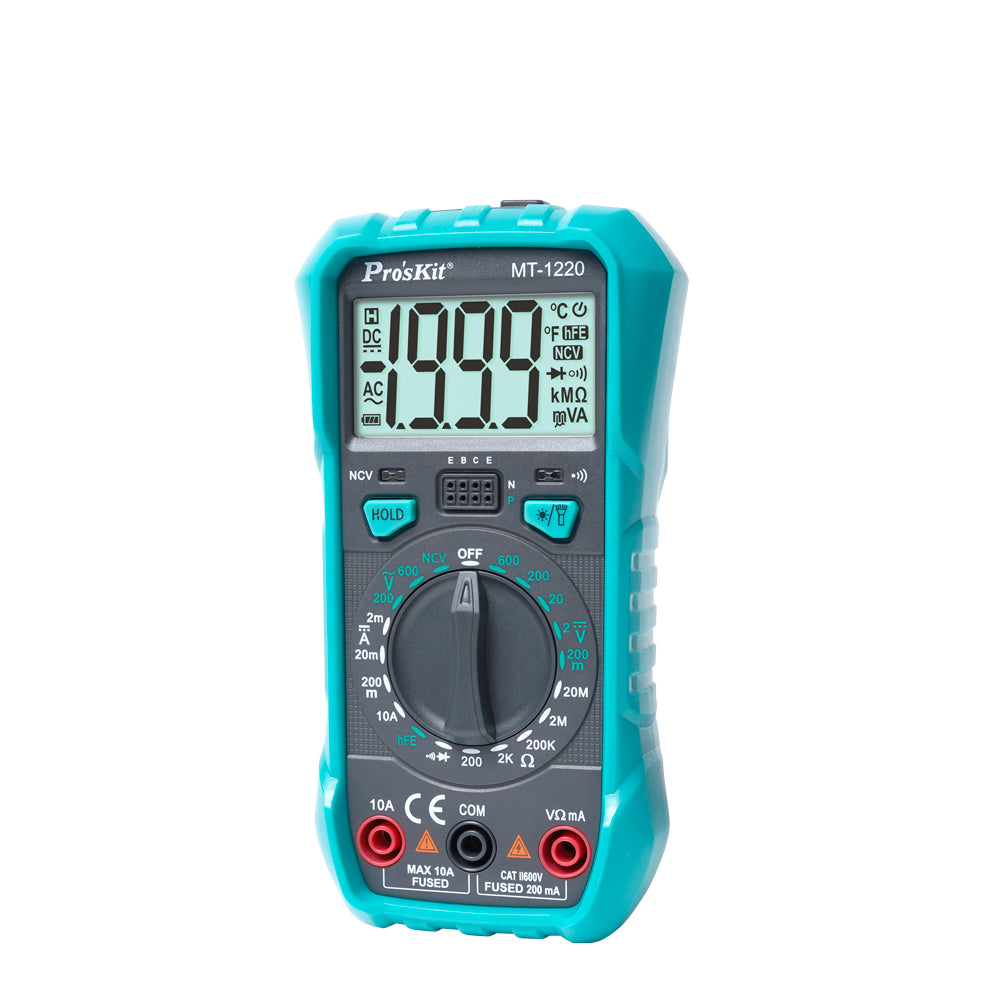

![[81869] Pro'sKit MT-1220 Manual Range Digital Multimeter For ACV, DCA, DCV, Resistance, Diode Test with LED Flesh light Image](/web/image/product.image/9643/image_1024/%5B81869%5D%20Pro%27sKit%20MT-1220%20Manual%20Range%20Digital%20Multimeter%20For%20ACV%2C%20DCA%2C%20DCV%2C%20Resistance%2C%20Diode%20Test%20with%20LED%20Flesh%20light%20Image%20?unique=2c70809)

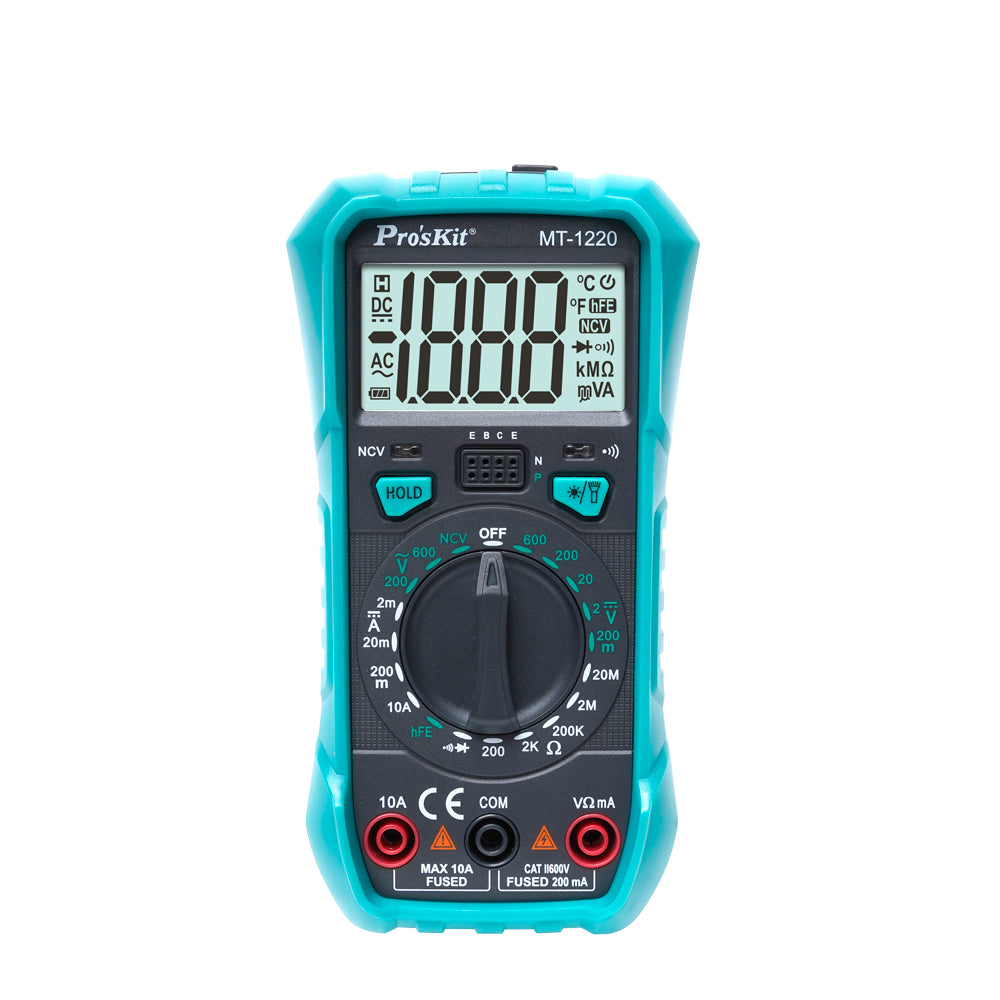

![[81869] Pro'sKit MT-1220 Manual Range Digital Multimeter For ACV, DCA, DCV, Resistance, Diode Test with LED Flesh light Image](/web/image/product.image/9643/image_128/%5B81869%5D%20Pro%27sKit%20MT-1220%20Manual%20Range%20Digital%20Multimeter%20For%20ACV%2C%20DCA%2C%20DCV%2C%20Resistance%2C%20Diode%20Test%20with%20LED%20Flesh%20light%20Image%20?unique=2c70809)
Specifications
MT-1220 – THE VERSATILE DIGITAL MULTIMETER: Suitable for all kinds of household use and electronics maintenance. It can troubleshoot electrical Circuit problems with speed & accuracy. The overload protection secures the meter’s lifespan and user’s safety as well!
Â
Compact but Multifunction
For ACV, DCA, DCV, Resistance, Diode test, and more
Precise Measurement
w/ 2mA DCA measurement
Overload Protection
Ensures user safety
|
Item# |
MT-1220Â 3-1/2 Digital Multimeter |
|
Auto/Manual Range |
Manual Range |
|
LCD Display |
3 1/2Â 1999 Counts |
|
DCV |
200mV/2V/20V/200V  ±（0.5% +5d） 600V±（0.8% +5d） |
|
ACV |
200V/600V  ±（1.2% +5d） S |
|
DCA |
2mA/20mA/200mA ±（1.0% +5 d） , 10A±（1.5% +3d） |
|
ResistanceΩ |
200Ω/2K/200k/2MΩ ±（1% +3d）,20mΩ ±（1.5% +3d） |
|
Continuity Buzzer |
Y |
|
Diode Test |
Y |
|
Transistor Test |
Y |
|
NCV Detection |
Y |
|
Data Hold |
Y |
|
LED Light |
Y |
|
LCD Backlight |
Y |
|
Low Battery Indication |
Y |
|
Accessories |
Test Lead, Manual |
|
Power |
1.5VÂ AAA x 3pcs (Not Included) |
|
Dimension |
148mm x 79mm x 48mm |
|
Weight |
210g(without battery) |
Â
Other Function: Auto Power Off
