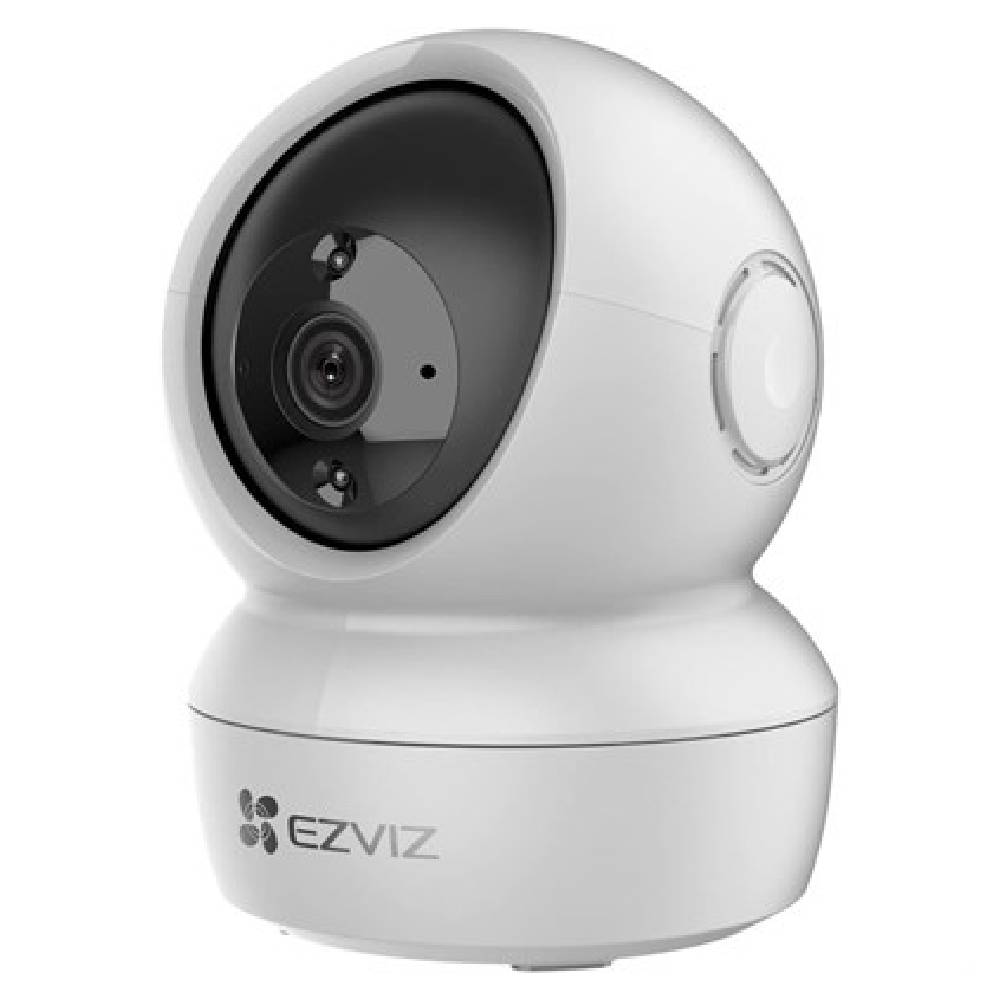

EZVIZ 2K Smart Wi-Fi Pan & Tilt Smart Home Camera TYPE-C

This combination does not exist.

BUY NOW

Description Specifications Reviews & Q/A

Description

Specifications
Model	CS-H6c-R105-1L3WF
Camera
Image Sensor	1/2.7" Progressive Scan CMOS
Shutter Speed	Self-adaptive shutter
Lens	4mm @ F1.6, viewing angle: 82° (Horizontal), 48° (Vertical), 98° (Diagonal)
Lens Mount	M12
Day & Night	IR-cut filter with auto-switching
DNR	3D DNR
WDR	Digital WDR
Compression
Video Compression	H.264/H.265
Video Bit Rate	Adaptive bit rate.
Max. Resolution	2304 × 1296
Frame Rate	Self-Adaptive during network transmission
Network
Smart Alarm	Motion Detection, Human Shape Detection, Loud Noise Detection
Wi-Fi Pairing	AP paring
Protocol	EZVIZ Cloud Proprietary Protocol
Interface Protocol	EZVIZ Cloud Proprietary Protocol
Interface
Storage	Supports microSD card (Up to 512 G)
Power	TYPE-C
Wired Network	RJ45 X 1 (10M/100M self-adaptive Ethernet port)
Wi-Fi
Standard	IEEE802.11b, 802.11g, 802.11n
Frequency Range	2.4 GHz ~ 2.4835 GHz
Channel Bandwidth	Supports 20MHz
Security	WPA/WPA2, WPA-PSK/WPA2-PSK
Transmission Rate	11b: 11Mbps, 11g :54Mbps, 11n :72Mbps
Output Power(EIRP)	19 dBm
Antenna Gain	1.9 dBi
General
Operating Conditions	-10°C to 45°C (14°F to 113 °F ), Humidity 95% or less (non-condensing)
Power Supply	DC 5V/1A
Power Consumption	5W max
IR Range	MAX. 10 meters (33ft)
Dimensions	88mm x 88.2 mm x 119mm (3.46” x 3.47” x 4.69”)
Packaging Dimensions	103mm x 103mm x 168mm (4.06” x 4.06” x 6.61”)
Bare Weight	218g (0.48lb)
