Description
Specifications
General information
1. Color: Black
2. Standard: EIA / TIA RS232C / RS485
3. Baud Rate: 300bps - 115.2kbps
4. Operating Mode: 2-wire asynchronous half-duplex
5. Communication Mode: Point-to-point, point-to-multipoint
6. Transmission Medium: Twisted pair (Wire diameter >= 0.5mm) or Shielded wire
7. Transmission Distance: RS232 interface up to 50ft (15m); RS485 interface up to 4000ft (1.2km)
8. Surge Protection: RS485 interface, 600W per wire
9. Dimensions: 15 x 10 x 3
10. 200
Detailed description
1. RS232 to RS485 converters are mostly used in industrial and commercial environments.
2. The reason is that RS485 converters can be used for multi-drop point networks, meaning you can connect multiple RS485 devices to one computer.
3. Up to 32 devices can be connected in a network to communicate over a single pair of wires (plus ground).
4. This type of communication is called half-duplex communication.
5. Most quality RS485 converters can communicate in this way at depths up to 1200 feet (1200 meters).
6. RS485 converters also have fairly good noise immunity, which is another reason why they are preferred in industrial environments.
Specifications

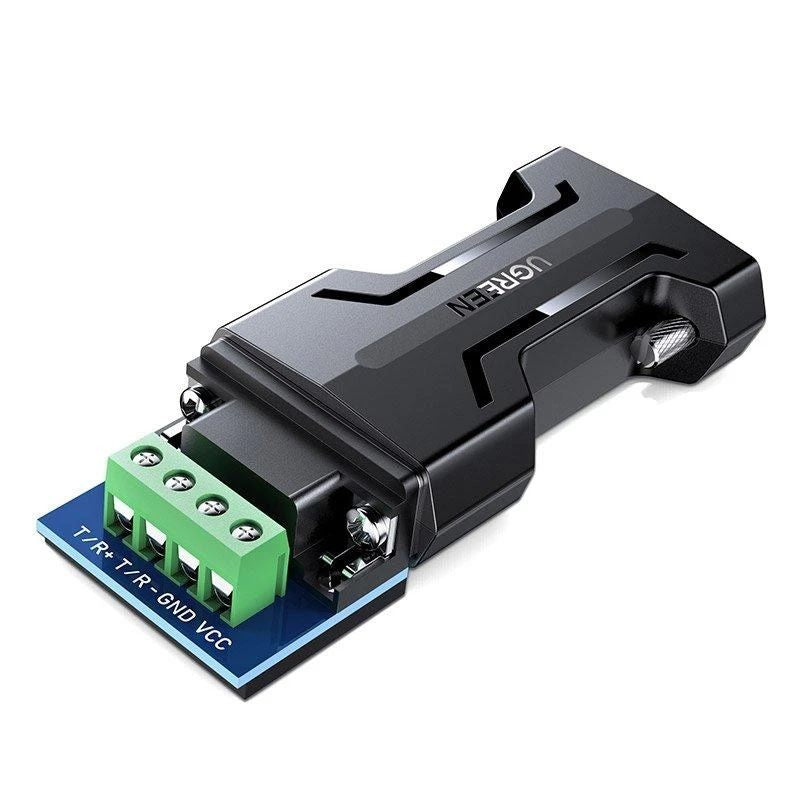

1. Manufacturer: Ugreen
2. Model: 70613 – CM261
3. Commercial bidirectional RS232 to RS485 converter used in industrial long-distance communication up to 4000 ft (1200 meters)
4. Allows connection of multiple bus nodes and up to 32 devices can be joined to the RS-485 network
5. Automatic RX - TX control; The RS-232 to RS-485 converter automatically controls “Receive” and “Transmit” modes.
6. Transmission speeds up to 115.2kbps (automatic detection) can be applied to point-to-point two-wire half-duplex and point-to-point two-wire full-duplex multipoint communication.
7. Built-in transient voltage suppressor (TVS) supports 600W surge protection on each RS485 link, effectively protecting devices from damage.
8. 15 x 10 x 3 cm
9. 200g
