Description
- SL-130A
N.C. door position detection output

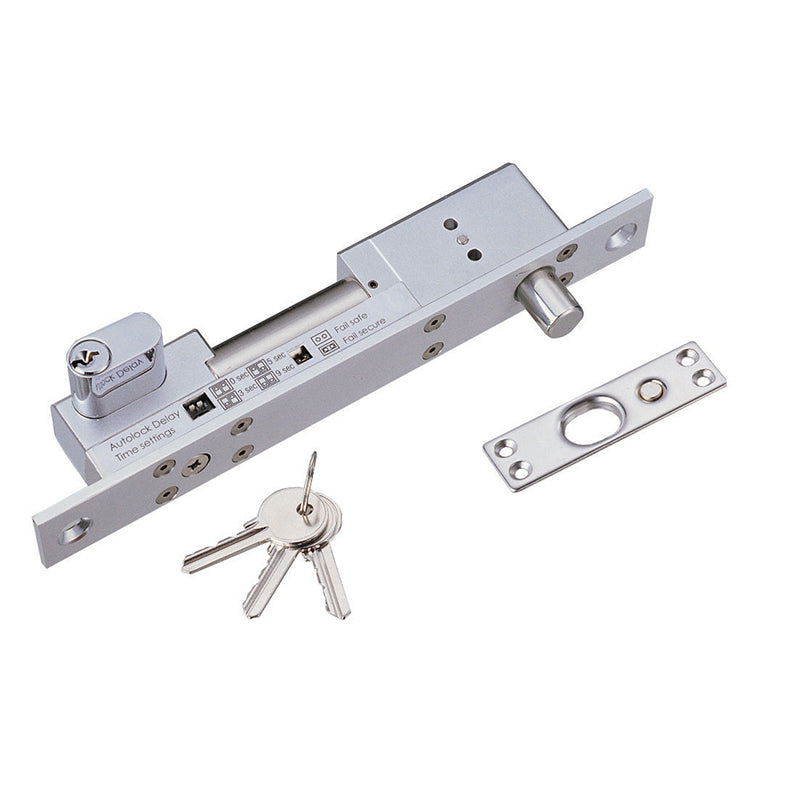

Power Supply: DC12V - SL-130U
Door position detection and bolt
position (N.C. & N.O.) output points
Power Supply: DC12~24V - Please note that this electric lock has an oval cylinder and its width is 5.8cm. Therefore, the best position to install is at the center of the door leaf (not door frame). Please refer to installation diagram.
Features
- Adjustable fail-safe (power to lock) or fail-secure (power to open).
- Adjustable to fail-secure (power to open) for high security places. Adjustable to fail-safe (power to lock) for public places.
- Built-in door open or door close state detection output point (250mA: N.C./ N.O.).
- Suitable for 180° door.
- Stainless steel bolt is able to sustain more than 800 kg of shear force.
- Adjustable to fail-secure (power to open) to achieve long unlock state function.
- Built-in oval cylinder as unlocking device. Use of oval cylinder to unlock when power cut occurred or during emergency.
- Built-in photo couplers door open push button input contact. Door will lock again automatically when door is not open within 5 seconds.
- Operation temperature: 0~90℃; Humidity: 85%Rh max.
- Dimensions:
Body: 200mm(L) x 25mm(W) x 38mm(D)
Strike plate : 90mm(L) x 23mm(W) x 2.5mm(D)
Bolt : 16mm(Throw) x 12.7mm(Diameter) - Weight:750g
- Certification: CE
