Specifications
| Category | Specification | Details |
|---|---|---|

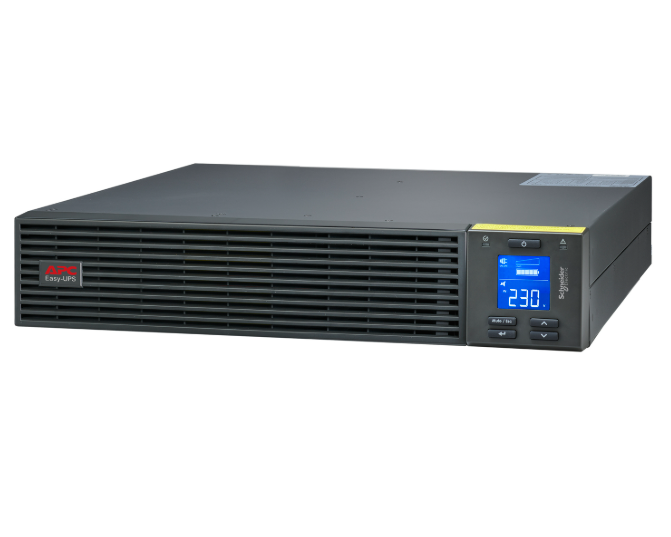

| Overview | Product Name | APC Easy UPS On-Line, 3kVA / 2400W |
| Model | SRV3KRI | |
| Form Factor | Rackmount 2U | |
| Presentation | High-quality double-conversion on-line UPS for unstable power conditions | |
| Lead Time | Usually in Stock | |
| Main | Product or Component Type | Uninterruptible Power Supply (UPS) |
| Range of Product | Easy UPS On-Line | |
| UPS Type | Double-conversion On-Line | |
| Run Time for Load | 2400 W (Min–Max: 240–2400 W) — 4 min 24 s | |
| Max Capacity Used | 100% | |
| Rated Power | 2400 W | |
| Rated Power (VA) | 3000 VA | |
| Maximum Configurable Power | 3000 VA / 2400 W | |
| Input | Main Input Voltage | 230 V AC (1 phase) |
| Input Voltage Options | 220 V / 240 V | |
| Input Connection Type | IEC 60320 C20 | |
| Input Voltage Limits | 110–285 V (half load) 160–280 V (full load) | |
| Network Frequency | 40–70 Hz (auto-sensing) | |
| Output | Output Voltage | 230 V AC (1 phase) |
| Output Voltage Options | 220 V / 240 V | |
| Output Connection Type | 6 × IEC 60320 C13 1 × IEC 60320 C19 | |
| Output Frequency | 50/60 Hz ±3 Hz (sync to mains) | |
| Wave Type | Pure sine wave | |
| Crest Factor | 3:1 | |
| Harmonic Distortion | 3% | |
| Efficiency & Bypass | Efficiency | 88% (full load) |
| Bypass Type | Internal bypass (automatic & manual) | |
| Battery & Runtime | Battery Type | Lead-acid (internal, included) |
| Battery Voltage | 72 V | |
| Battery Recharge Time | 4 hours | |
| Battery Life | 3–5 years | |
| Replacement Battery | APCRBCV202 | |
| Battery Charger Power | 60 W (rated) | |
| Extended Runtime | No | |
| Interface & Control | Control Panel | Multifunction LCD status & control console |
| Alarms | On battery, low battery, overload (continuous tone) | |
| UPS Connectivity | USB port, Serial port | |
| Expansion Slot | 1 (Intelligent Card Slot) | |
| USB Compatible | Yes | |
| Protection | Surge Energy Rating | 600 J |
| Physical | Rack Units | 2U |
| Colour | Black (RAL 7010) | |
| Cable Length | 1.48 m | |
| Number of Cables | 1 | |
| Height | 86 mm | |
| Width | 437 mm | |
| Depth | 632 mm | |
| Net Weight | 27.6 kg | |
| Mounting Position | Horizontal | |
| Mounting Mode | Rack-mounted (rail kit sold separately) | |
| Environment | Product Certifications | CE, UKCA, EAC, TISI |
| Standards | EN/IEC 62040-1 & 62040-2 | |
| Operating Temperature | 0–40 °C | |
| Storage Temperature | -20–50 °C | |
| Operating Humidity | 0–95% (non-condensing) | |
| Storage Humidity | 0–95% (non-condensing) | |
| IP Rating | IP20 | |
| Acoustic Level | 50 dBA | |
| Heat Dissipation | 910 Btu/h | |
| Operating Altitude | 0–3000 m | |
| Storage Altitude | 0–15,000 m | |
| Packing Units | Package Type | PCE |
| Units per Package | 1 | |
| Package Dimensions | 22.8 × 79.4 × 57 cm | |
| Package Weight | 29 kg | |
| Warranty | Warranty Period | 24 months |
