Description
Specifications
Technical Details
Item Weight   0.32 ounces
Package Dimensions 4.49 x 4.02 x 0.31 inches
Color   Mix
Pattern   DC 5V (1s~15min)
Shape Rectangle
Power Source DC
Voltage  5 Volts
Installation Method   Surface-Mounted
Item Package Quantity     1
Number Of Pieces   1
Switch Type   One-way
Switch Style   Toggle switch
Usage Indoor use only

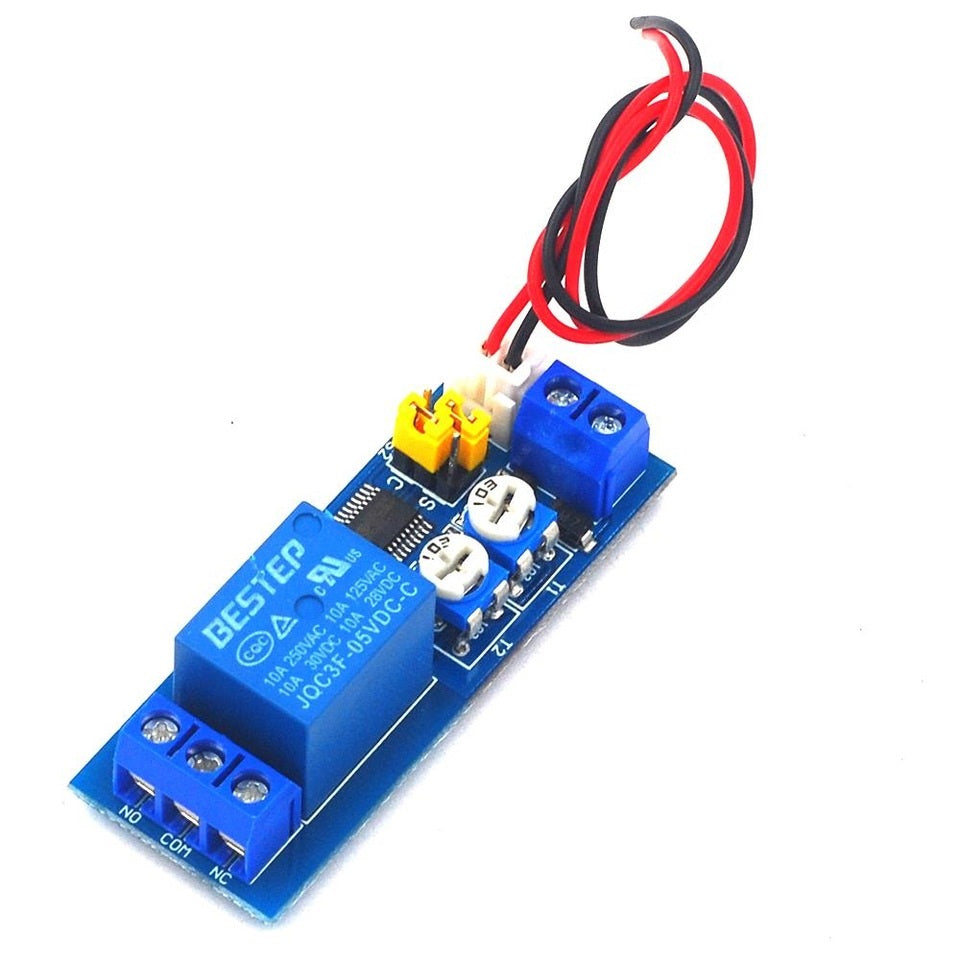

This module uses MCU as the main chip.
High timer precision
MCU watchdog circuit and special reset chip
Stable and reliable work
Specification:
Once mode
1. The module Power-on, When triggered the relay is switched on, timer delay off.
2. When triggered on the delay process, again triggered, it will immediately interrupt the delay.
Cycle mode
1. The module Power-on, When triggered the relay is switched on, (T1) timer delay off. (T2) timer delay on. Such cycle. T1 and T2 are set by two adjustable resistors, respectively.
2. When triggered on the delay process, again triggered，it will immediately interrupt the delay.
Typical application reference
1. timer operating equipment, such as each press key trigger,when reach 5 minutes the automatic power off
2. machine repeat test circuits, such as power 1 minutes on and then power off 1 minutes ， such a cycle of testing
3. fish tank pump intermittent pumping oxygen.
4. other timer control equipment.
Performance
Jumper OP1: 1 to 90 seconds, 0.1 seconds of regulation accuracy
Jumper OP2: 1 seconds to 15 minutes, 1 seconds of regulation accuracy
The time delay error of all kinds of temperature and humidity is not more than 2%.
High timer precision
MCU watchdog circuit and special reset chip
Stable and reliable work
Specification:
Once mode
1. The module Power-on, When triggered the relay is switched on, timer delay off.
2. When triggered on the delay process, again triggered, it will immediately interrupt the delay.
Cycle mode
1. The module Power-on, When triggered the relay is switched on, (T1) timer delay off. (T2) timer delay on. Such cycle. T1 and T2 are set by two adjustable resistors, respectively.
2. When triggered on the delay process, again triggered，it will immediately interrupt the delay.
Typical application reference
1. timer operating equipment, such as each press key trigger,when reach 5 minutes the automatic power off
2. machine repeat test circuits, such as power 1 minutes on and then power off 1 minutes ， such a cycle of testing
3. fish tank pump intermittent pumping oxygen.
4. other timer control equipment.
Performance
Jumper OP1: 1 to 90 seconds, 0.1 seconds of regulation accuracy
Jumper OP2: 1 seconds to 15 minutes, 1 seconds of regulation accuracy
The time delay error of all kinds of temperature and humidity is not more than 2%.
