Specifications
Technical Detail
Model: SH-320D Host
Power supply voltage: AC220V / 50Hz
Current consumption: 227mA
Frequency response: 100 ~ 14.5KHz
Signal to noise ratio: 90dB
Sensitivity: -50dB
Recording output level: LINE output - 10dBV
Balanced output level: LINE output - 10dBV
Audio input level: LINE input - 10dBV
Size: Length: 482mm Width: 192mm Height: 45mm
Weight: 4 lbs
Â

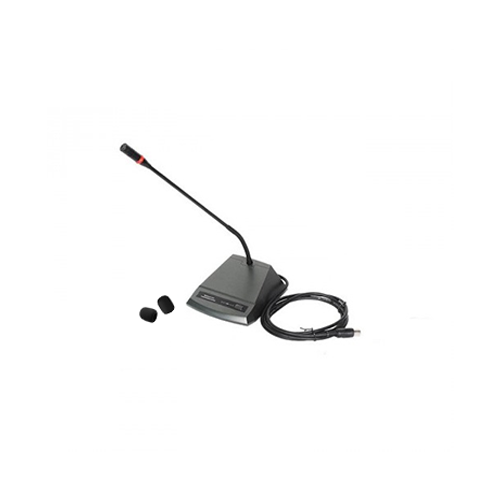

(Chairman unit) &Â (Representative Unit)
Connection: 8-core hand-held cable connection
Power supply voltage: DC18V
Current consumption: 32mA
Sensitivity: -50Db / Pa
Microphone sensitivity: -45dB ± 5dB
Frequency response: 100Hz ~ 10kHz
Length of the pole: 410mm
Handle connection Cable length: 2 meters
Size: Length: 173mm Width: 129mm Height: 52mm
Â
Â
Host have Three-way output, each-way max. with 16pcs table microphone unit. Total 48pcs table microphone unit. (include Chairman MIC and Delegate MIC, Table Microphone working not need Battery. )
Â
Each microphone unit with 2m cable. Host to first microphone with 10m cable.
Â
Â
Host with 1pcs to 48pcs all can working. (Only use 1 unit Chairman OR Delegate Unit also can working, max 48pcs.)
System Features:
★ Double-goose neck design can be noted in the direction of need, easy to install quickly. The indicator light on the gooseneck microphone indicates the status of the microphone.
★ Unique audio processing circuit to improve the clarity of the entire system.
★ Hand-held cable connection, the microphone connection is simplified, the entire system installation on the required works and costs can be reduced.
★ Expansion and change the configuration is easy, it is with 3 way Output, each channel way can connect 16 microphone. a host total can connect 48 conference microphone unit,
★ Chairman unit can use the priority button (Priority) to control the speaking order, control the atmosphere of the meeting.
★ with recording output connection recorder, all the recordings can be completely sound preservation, but also external sound amplification equipment.
