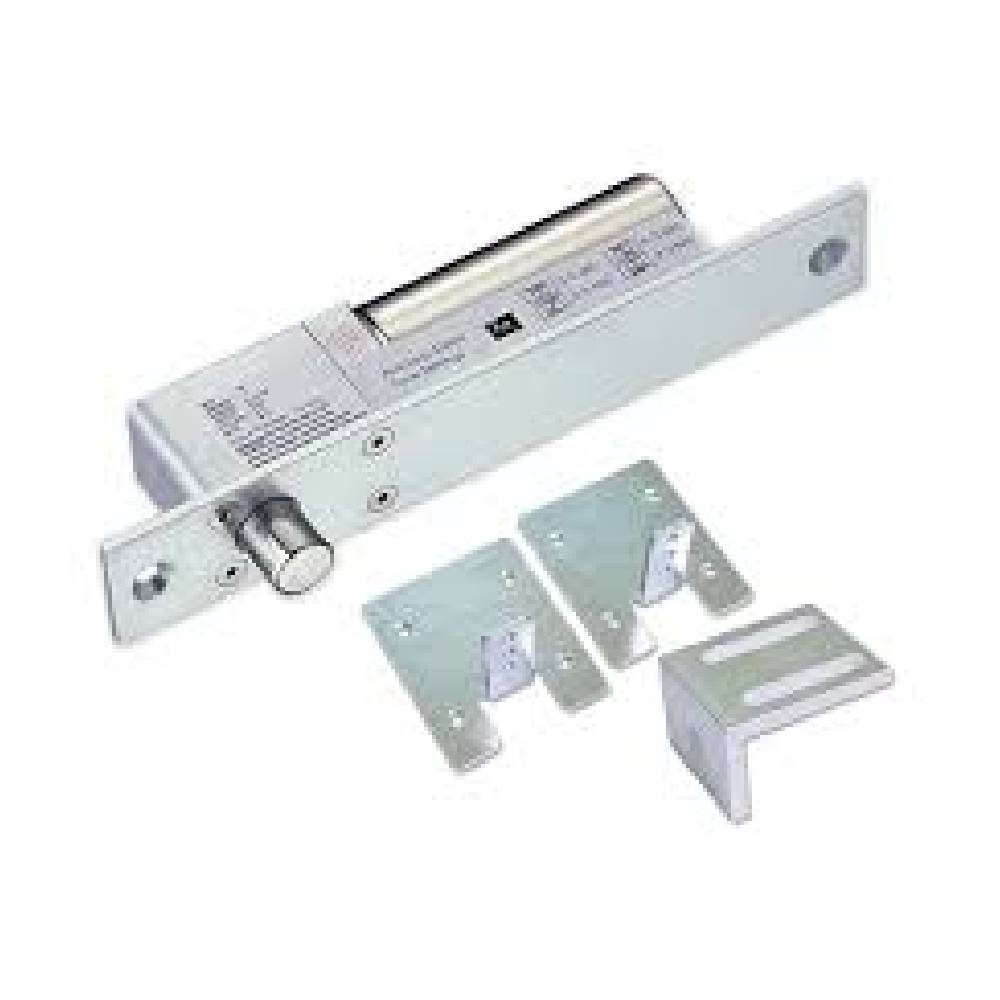

Description
- SL- 100D
Power supply: DC 12V
Without door position detection output - SL- 100DA
Power supply: DC 12V
With N.O. door position detection output - Note：SL-100D has its own micro-computer control and detection. It is strongly suggested to use its own door open point (N.O. point) to open door and do not turn its power off (N.C. point) to open door.
Features
- Power supply: DC 12V
- Operation current : 900mA; Holding current: 350mA
- Special wearable design. Mechanic life of more than 1,000,000 times.
- Fail-safe type and MOV surge protection.
- Delay output point is available. Open the lock before automatic door open to prevent both actions
- being stuck at the same time.
- Micro computer door position detection and current control to prevent error action and lower the lock's temperature.
- Stainless steel bolt is able to sustain more than 1000 kg of shear force.
- Door lock delay time: 0/ 2.5/ 5/ 9 seconds available to set.
- Built-in photo couplers door open push button input contact. Door will lock again automatically when door is not open within 5 seconds.
- Operation temperature: 0~90℃ ; Humidity: 85%Rh max.
- Dimensions:
Body: 200mm(L) x 32mm(W) x 42mm(D)
Bolt : 16mm(Throw) x 15.5mm(Diameter) - Weight:860g
- Certification: CE
