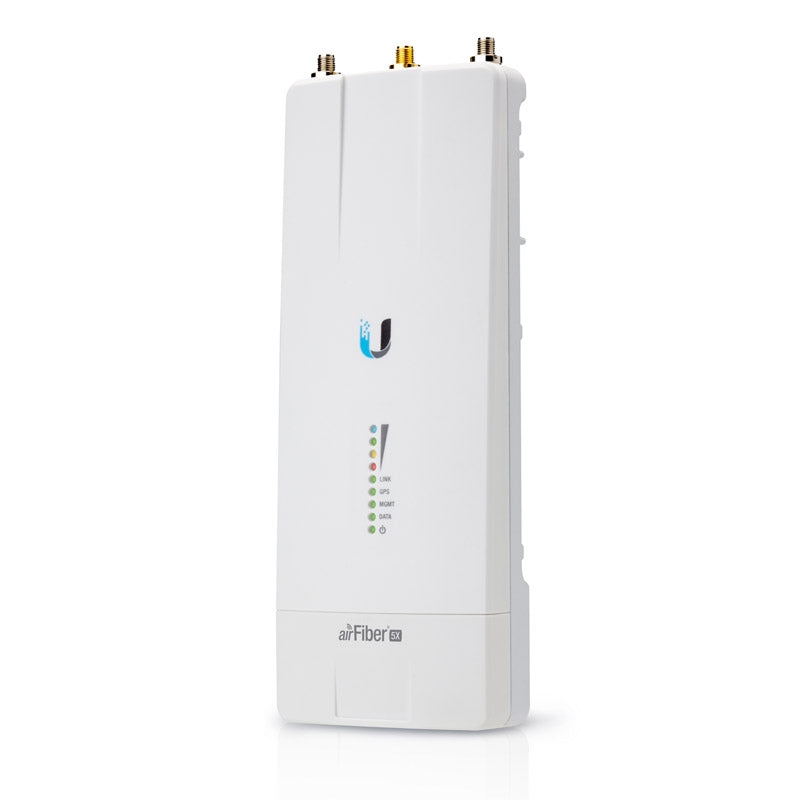

airFiber AF-5XHD 5 GHz Carrier Backhaul Radio with LTU Technology

Description

Specifications

True 1Gbps+ spectrally efficient, noise resilient PTP technology specifically designed for WISP’s.

Ubiquiti continues to disrupt the wireless broadband market with revolutionary LTU technology that breaks through the limitations of 802.11 Wi-Fi technology. Designed for use in the 5 GHz frequency band, the new airFiber® AF-5XHD is Ubiquiti's first LTU radio, offering greater channel bandwidths of up to 100 MHz, and more advanced RF components. Pair the AF-5XHD with a compatible Ubiquiti® airFiber X antenna or RocketDish™ antenna for a complete 5 GHz Point-to-Point (PtP) solution. An IP67 upgrade kit is included to provide enhanced protection from dust and water.

• 5 GHz Carrier Radio with LTUâ„¢ Technology Up to 1+ Gbps Real Throughput, 100+ km Range
• Full-Band Certification including DFS

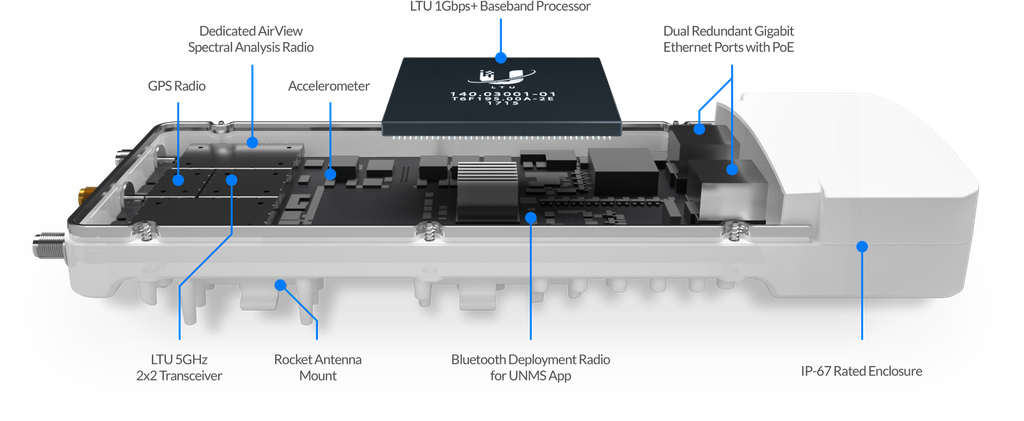

• Ubiquiti’s LTU Custom Silicon

Dimensions
Radio
Box
224 x 82 x 48 mm (8.82 x 3.23 x 1.89")
261 x 107 x 107 mm (10.28 x 4.21 x 4.21")
Weight
Radio
Box
0.35 kg (0.77 lb)
1.1 kg (2.43 lb)
RF Connectors (2) RP-SMA Weatherproof (CH0, CH1)
(1) SMA Weatherproof (GPS)
GPS Antenna External, Magnetic Base
Power Supply 24V, 1A PoE Gigabit Adapter (Included)
Power Method Passive Power over Ethernet
Pins 1, 2, 4, 5 (+) and Pins 7, 8, 3, 6 (-)
Max. Power Consumption 15W @ Max. Power/Duty Cycle
Supported Voltage Range +18 to +54VDC1
Automatic Transmit Power
Control (ATPC) Yes
Mounting airFiber X Mount (Rocket Mount Compatible)
GPS Pole Mount (Included)
Certifications CE, FCC, IC
Operating Temperature -40 to 55° C (-40 to 131° F)
AF-5X Networking Interface

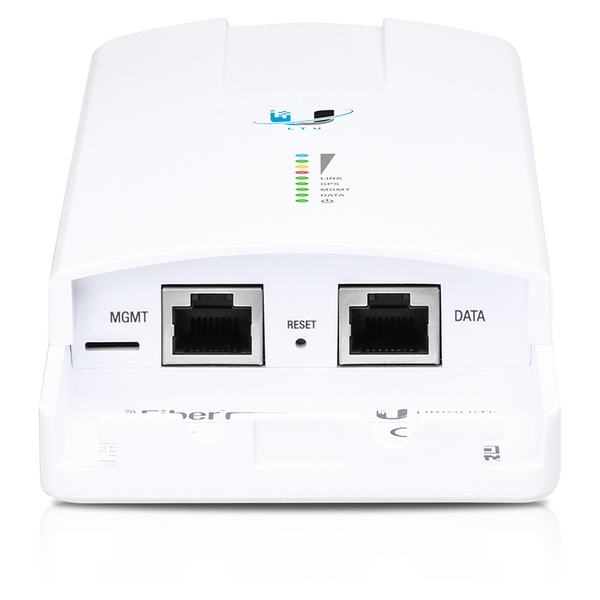

Data Port (1) 10/100/1000 Ethernet Port
Management Port (1) 10/100 Ethernet Port
AF-5X System
Processor INVICTUS IC
Maximum Throughput 500+ Mbps2
Maximum Range 300+ km2
Packets per Second 1+ Million
Encryption 128-bit AES
OS airOS F
Wireless Modes Master/Slave
Latency
Half Duplex Mode < 2 ms at Full Throughput
MTU (Maximum Transmission
Unit) Up to 9600
Datasheet
AF-5X Radio
Frequency Range
FCC 15.407
IC RSS-210
ETSI EN 301 893, EN 302 502
Other Regions
5150 - 5350 MHz, 5470 - 5850 MHz
5470 - 5600 MHz, 5650 - 5850 MHz
5470 - 5875 MHz
5150 - 5950 MHz*
Max. Conducted TX Power 26 dBm*
(Dependent on Regulatory Region)
Frequency Accuracy ± 2.5 ppm without GPS Synchronization
± 0.2 ppm with GPS Synchronization
Channel Bandwidth 10/20/30/40/50 MHz Selectable
Programmable Uplink and Downlink Duty Cycles

Data sheet
https://dl.ui.com/datasheets/airfiber/airFiber_5XHD_DS.pdf
