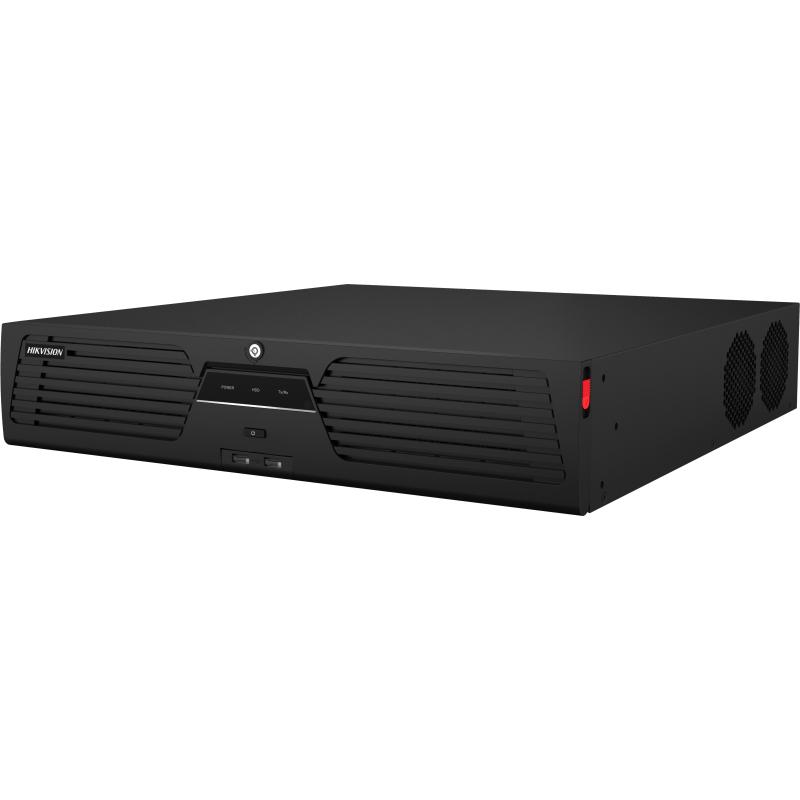

| Model |
DS-9664NI-M8 |
| Product type |
IP recorder |
| type |
Project grade |
| Brand |
Hikvision |
| Series |
M series, Project |
| Parameters |
| Number of channels |
64 |
| Operating band |
Input |
MBps |
400 |
| Operating band |
Output |
MBps |
400 |
| Output modes |
HDMI 1/VGA 1 |
Parallel |
| HDMI 2/VGA 2 |
Parallel |
| HDMI 1/HDMI 2, VGA 1/VGA 2 |
Independent |
| Max. output resolution |
HDMI 1 |
px |
8K (7680 × 4320) |
| VGA 1 |
px |
1920 × 1080 |
| Max. output resolution |
HDMI 2 |
px |
4K (3840 × 2160) |
| VGA 2 |
px |
1920 × 1080 |
| BNC |
px |
704 × 576 |
| Coding/decoding |
compression standards |
H.265+, H.265, H.264+, H.264 |
| Coding/decoding |
max. recording resolution |
MP |
32 |
| two stream recording |
Yes |
| synchronous playback |
16 channels |
| max. decoding resolution |
2 32 Mpix channels + 2 8 Mpix channels, 10 8 Mpix channels, 20 4 Mpix channels, 40 1080p channels |
| HDD |
Number of SATA interfaces |
8 |
| HDD |
Number of eSATA interfaces |
1 |
| max. capacity of each HDD |
TB |
16 |
| RAID |
Yes |
| RAID support |
RAID0, RAID1, RAID5, RAID6, RAID10, (min. 4 TB each drive) |
| USB |
2.0 |
2 |
| USB |
3.0 |
2 |
| Two-way audio |
Yes |
| Audio |
Input |
1, RCA |
| Audio |
Output |
2, RCA |
| Alarm inputs/outputs |
Yes |
| Alarm |
Input |
16 |
| Alarm |
Output |
9 |
| Serial interfaces |
RS-232, RS-485 |
| Ethernet |
2 × RJ-45 10/100/1000 |
| Built in PoE switch |
No |
| Applications |
iVMS-4200, Hik-Connect, Hik-Central |
| Archiving |
USB, Remote |
| Network protocols |
ISUP, DDNS, DHCP, DNS, HTTP, HTTPS, IPv4, IPv6, iSCSI, NFS, NTP, RTSP, SADP, SMTP, SNMP, TCP/IP, UPnP |
| Smart functions |
| Support for cameras with analytical functions |
Motion detection 2.0, VCA, Heat maps, People counting, ANPR |
| Additional functions |
ANR, HotSpare, POS |
| Others |
| Power output |
DC |
V |
12 |
| Power output |
DC |
A |
1 |
| Power supply |
AC |
V |
110...240 |
| Current drawn (no HDD and PoE) |
W |
max. 50 |
| Operating temperature |
°C |
-10...+55 |
| Permissible humidity |
% |
10 to 90 |
| Rack mounting |
Yes |
| Height |
U |
2 |
| Dimensions (W × D × H) |
mm |
445 × 465 × 93 |
| Weight |
kg |
12 |
