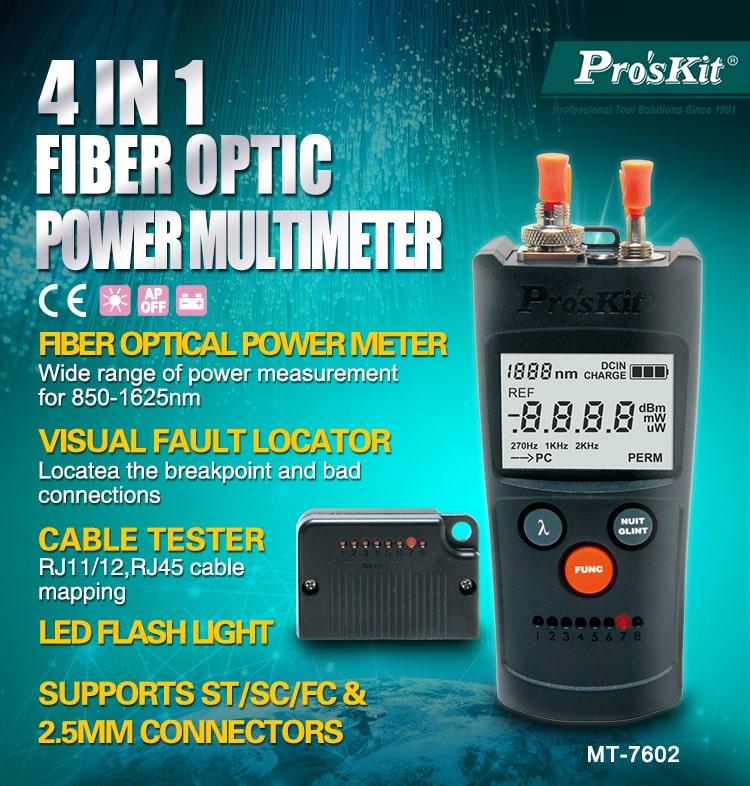

FEATURES
Wide range of power measurement - from 850 nm to 1625 nm
Power measurements in dBm, mW and μW
Support for 2.5 mm universal connectors (for ST/SC/FC)
Easy to locate the breakpoint and bad connections in fiber optic cables
Tests two types of connectors (RJ-11 and RJ-45)
Built-in LED flashlight
Auto power off
Small and easy to use
TECHNICAL SPECIFICATIONS
Detector type InGaAs
Optical connector FC / SC / ST and 2.5 mm Universal
Calibrated wavelengths 850 / 1300 / 1310 / 1490 / 1550 / 1625 nm
Measurement range +6 ~ -70 dBm
Accuracy ± 0.2 dB
Power measurement linearity ±2.0%
Display resolution ±0.01 dB
Power display units dBm / mW / μW
Output power ＜1 mW
Visual fault locator range 3~5 kM (SM)
Connector ST / SC / FC and 2.5 mm Universal
Laser safety rating class 2
Wavelength 650 nm (±20 nm)
Output modes continuous (CW), 2 Hz pulsed
Power supply AA/LR6 1.5 V × 2 pcs.
Size 105 × 52 × 34 mm
Weight 90 g (w/o battery)
