Description

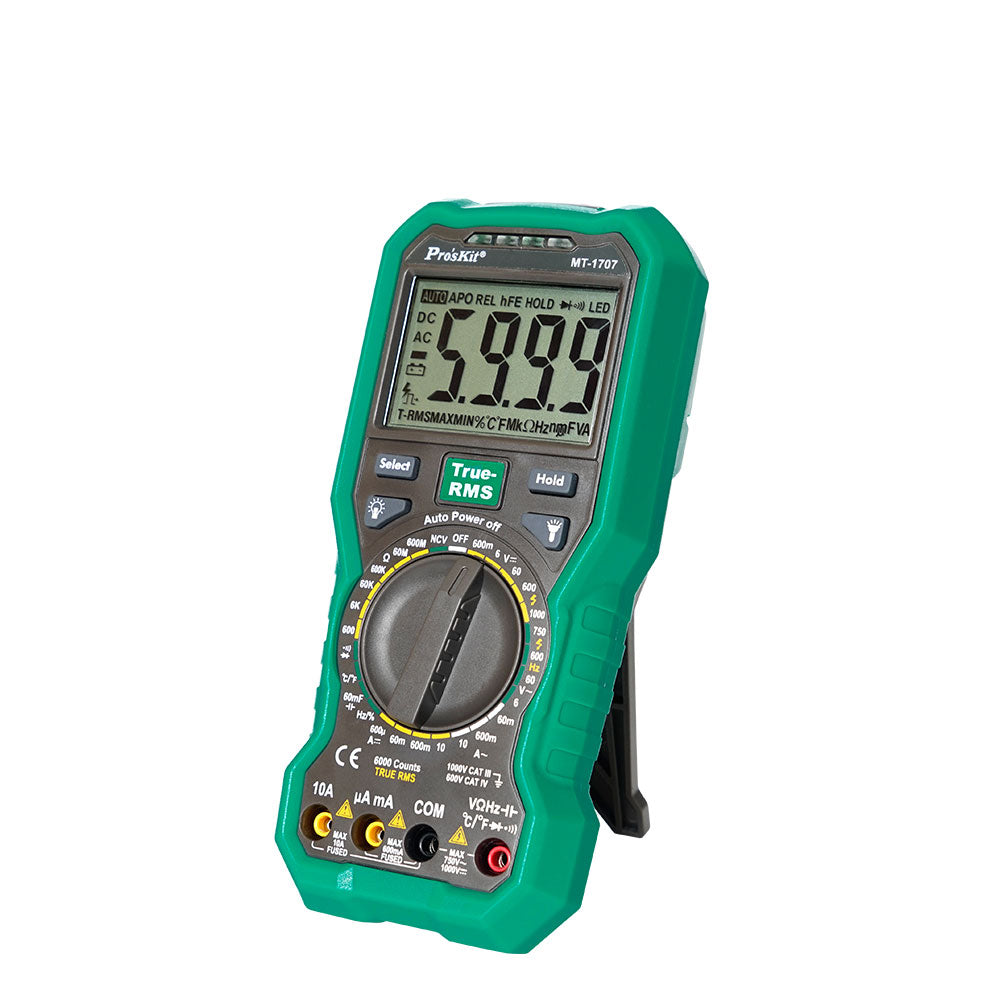

MT-1707 3-5/6 True-RMS Multimeter is designed for accurate measurements, ideal for a wide variety of electrical and electronic testing applications.
Non-Contact Voltage Detector
- tests AC 90-1000V
Voltage level indicator
- To show the voltage signal intensity
Large LCD w/ Backlight
- Design with 3 5/6 digits 5999 counts provide accurate, easy to use, and great to understand reading even in dark areas.
28 Positions, Full Functions
- Special design for ACV/ACA Ture-RMS measurement.
- Measuring DCV/ACV/DCA/ACA/resistance,capacitance/Hz duty cycle/temperature,and diode.
Friendly Extra Functions
- Continuity with beeper, duty cycle, data hold, auto power-off, LED light, low battery indication, and Input alert protection ensure uninterrupted operation and long life.
Â
| Specifications | MT-1707 |
| DCV | 600mV/6V/60V/600V/1000V ±(0.5%+3d) |
| ACV TrueRMS | 6V/60V ±(0.8%+3d) 600V/750V ±(1%+10d) Frequency Response：40Hz-1KHz |
| DCA | 600uA/60mA/600mA±(0.8%+3d) 10.00A±(1.5%+10d) |
| ACA True RMS | 60mA/600mA±(1%+3d) 10.00A±(2%+10d) Frequency Response：40Hz-1KHz |
| Frequency (Hz) | 9.999Hz~9.999MHz±(1%Reading+3 digits) |
| Resistance | 600Ω/6kΩ/60kΩ/600kΩ±(0.8%+3d) 60MΩ/600MΩ±(1.2%+30d) |
| Capacitance |
1nF~9.999nF ±(4.0%+30d) 10nF~1mF ±(2.5%+10d) 1mF~60mF ±(5.0%+30d) |
| Temperatures | -20°C~1000°C/-4°F~1832°F±(1.0%+3d) |
| Other Function | Diode test, Duty cycle, Continuity buzzer, NCV detection, Data hold, Low battery indicator, LED light |
| Power | 1 x 9V 6F22 Battery(not included) |
| Weight | 315g (without battery) |
| Dimension | 190 mm(L)×89 mm(W)×53mm(H) |
| Individual packing | Color Box |
