Specifications

Power Supply:   2AA batteries

Standby current:  ≤50uA

Alarm current:   ≤50mA

Communication Protoco:   ZigBee HA

Working frequency:  2.4GHz(Can't Support 5GHz WIFI)

Wireless standard:  IEEE 802.15.4

Channel:  11.14.15.19.20.24.25

Modulation mode:   OQPSK

Encryption:   AES-128

Communication speed: 250 Kbps

Transmission power:  ≤4.5dBm

Receiver sensitivity:  ≥=90dBm

Detaction range:   120 degrees horizontally

Detection distance:   7m

Communication distance:   80m(in open area)

Casing material:     PC+ABS

Operating environment:  -10-50℃

Operating humidity:   10%-90% RH

Dimension:   52.6 x 63mm

Weight: 168 g



Package Includes :

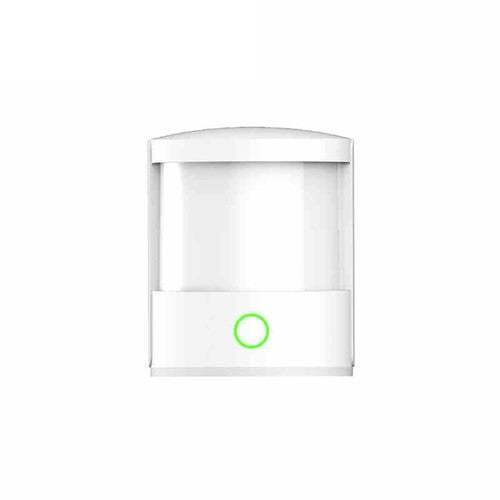

 1 x ORVIBO Motion Sensor

1 x ORVIBO Sensor Bracket

1 x Setting Screws Pack

1 x User Manual

1 x Warranty Card

1 x AA Battery
