Description
Specifications
| Category | Specification |
|---|

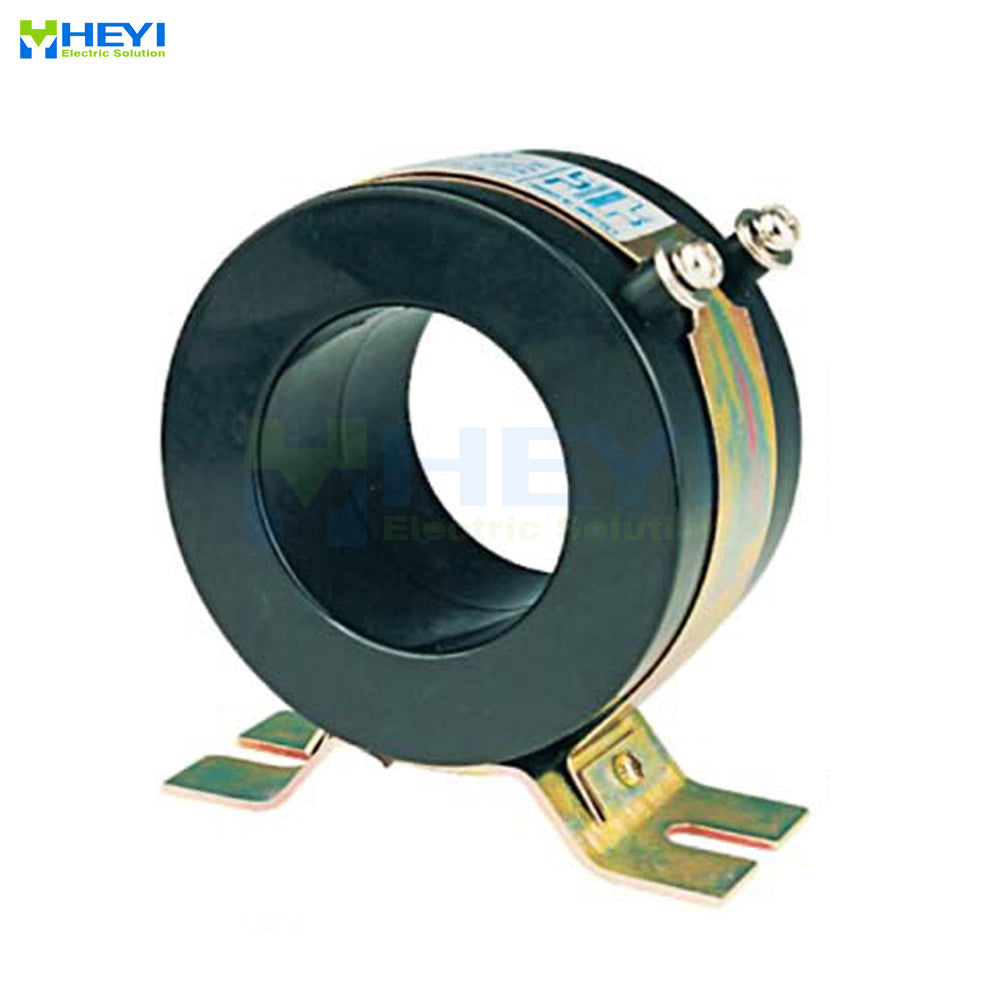

| Product Name | Current Transformer |
| Model | RCT-60 800 |
| Brand | ANDELI |
| Primary Current Rating | 800 A |
| Secondary Current Rating | 5 A |
| Accuracy Class | 0.5 |
| Turns Ratio | 800:5 |
| Frequency | 50 / 60 Hz |
| Rated Burden | Typically up to ~5 VA (application dependent) |
| Core Type | Toroidal / laminated core |
| Phase Angle Error | Minimal (Class 0.5) |
| Insulation Level | Standard CT insulation per IEC/ANSI |
| Mounting Style | Window / through-hole type |
| Output Terminals | Screw / terminal block |
| Operating Temperature | –5 °C to +40 °C (typical) |
| Application | Metering & protection in electrical panels and switchboards |
