Description
Specifications
| Category | Specification |
|---|---|

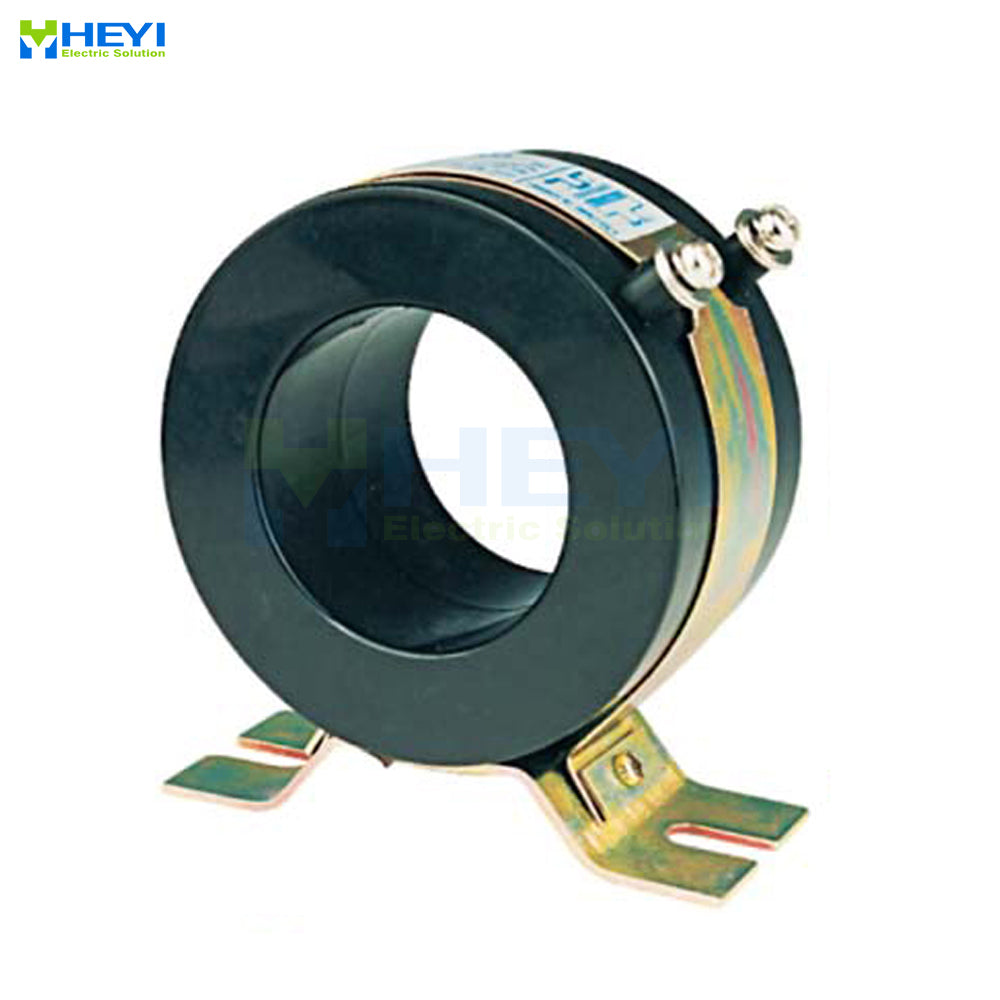

| Product Name | Current Transformer |
| Model | RCT-60 600 |
| Brand | ANDELI |
| Primary Current Rating | 600 A |
| Secondary Current Rating | 5 A |
| Accuracy Class | 0.5 |
| Turns Ratio | 600:5 |
| Frequency | 50 / 60 Hz |
| Rated Burden | Up to ~5 VA (typical—depends on meter/relay) |
| Core Type | Toroidal / laminated core (industry standard) |
| Phase Angle Error | Minimal phase error per Class 0.5 |
| Insulation Level | Standard CT insulation (IEC / ANSI) |
| Mounting Style | Window / through-hole |
| Output Terminals | Screw / terminal block |
| Operating Temperature | −5 °C to +40 °C (typical) |
| Application | Metering / protection in electrical panels & switchboards |
