Specifications
Key Specifications:

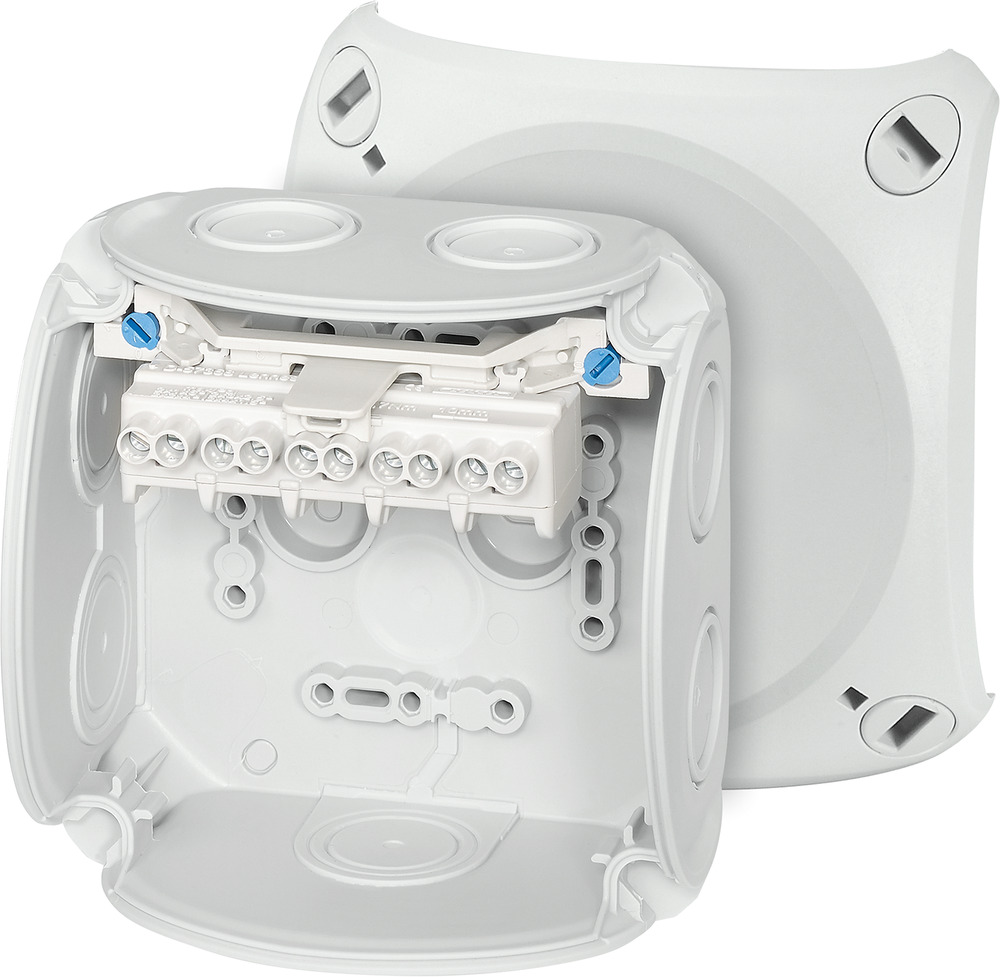

- Model: DK 0404 G
- Type: Cable Junction Box with Terminals
- Material: Polypropylene, halogen-free, silicone-free
- Color: Grey (RAL 7035)
- Dimensions (H x W x D): 104 x 104 x 70 mm
- Protection Rating: IP66
- Rated Insulation Voltage (Ui): 690 V a.c./d.c.
- Terminal: 5-pole, for 1.5-4mm² conductors (Cu)
- Cable Entries: 7 elastic membranes (removable), accommodates 9-21mm cable diameter
- Installation: Indoor/protected outdoor, includes plug-in external wall mounting brackets
- Standards: Conforms to IEC 60670-22, glow wire test 750°C (IEC 60695-2-11), UL Subject 94 V-2
