Description
Specifications
Technology Proximity
Supported card types HID 125 kHz (also ZKAccess)
KR500H Mounting Mullions, including metal doors and window frames
KR502H and KR503H Mounting Metal or plastic US single-gang wall box, as well as at surfaces
Indoor & Outdoor Installation Electronics sealed in weather
and tamper-resistant epoxy potting
Keypad Model KR502H only
LED indicator red, green, amber and “o” (represent 4 states)
Audio indicator Beep
Wiegand Inferface Wiegand-Out port
Power Supply 5 to 16V DC
IP-rating 67
Operating Temperature -35° F to 149° F / -40° C to + 65° C
Operating Humidity 20% – 80%
KR500H Dimensions (H×W×D) 3.2 x 1.7 x .7 inches (81 x 43 x 18 mm)
KR502H Dimensions (H×W×D) 3.9 x 3.9 x 1 inches (117 x 76 x 19 mm)

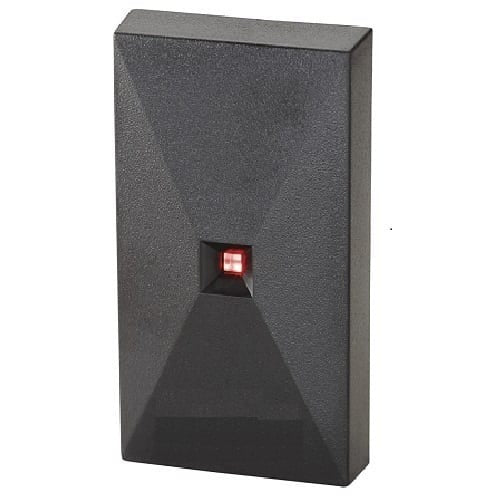

KR503H Dimensions (H×W×D) 4.6 x 3 x .6 inches (117 x 76 x 10 mm)
