UGREEN 5-In 1-Out HDMI Switch

Description

Specifications

Description

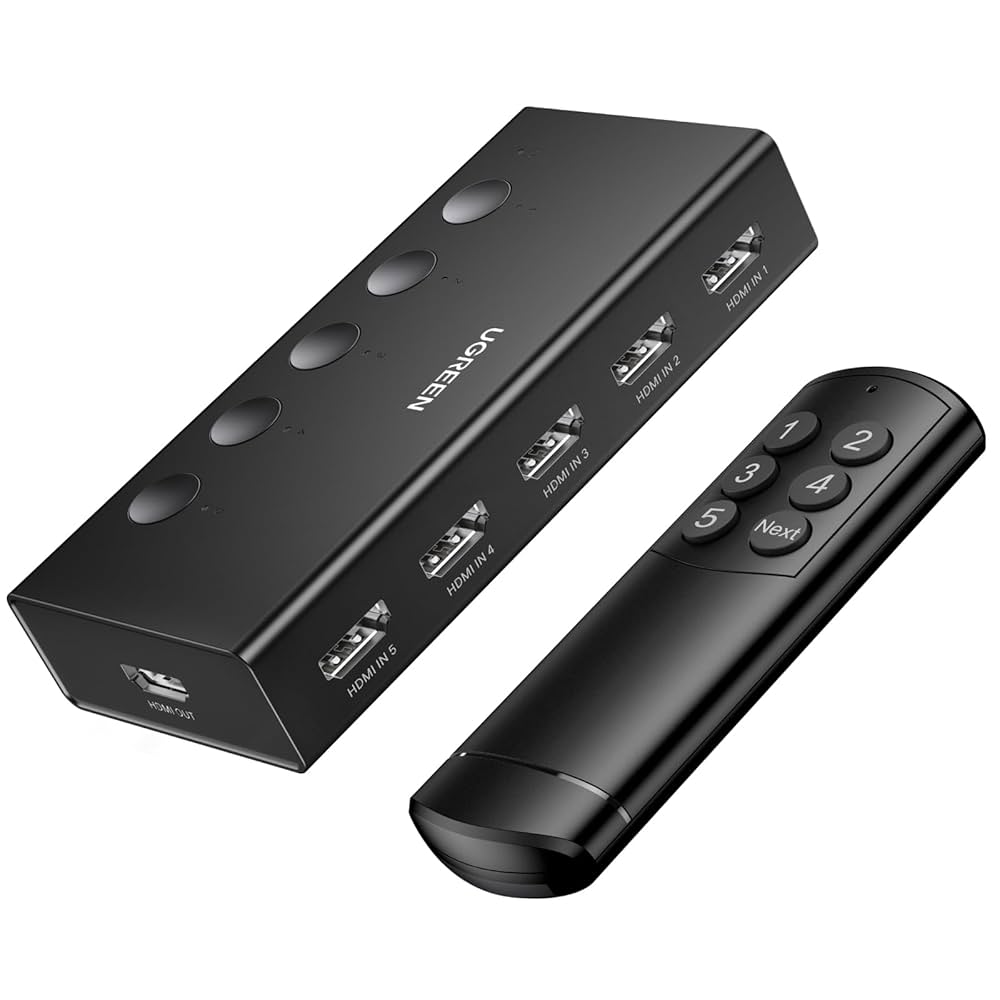

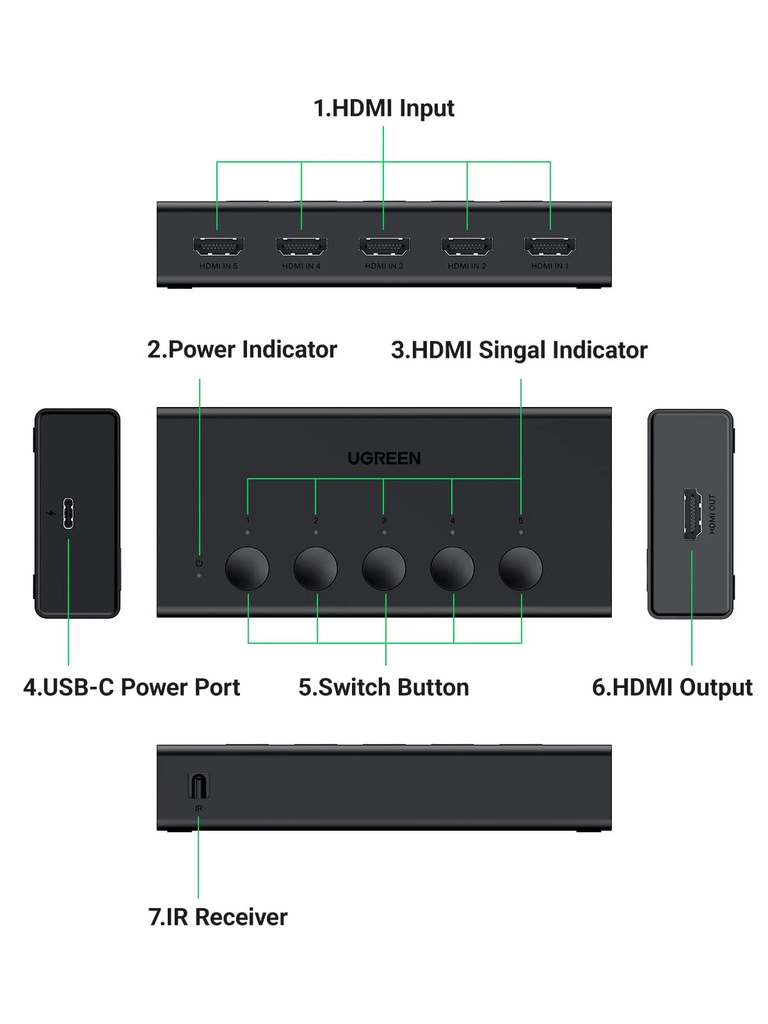

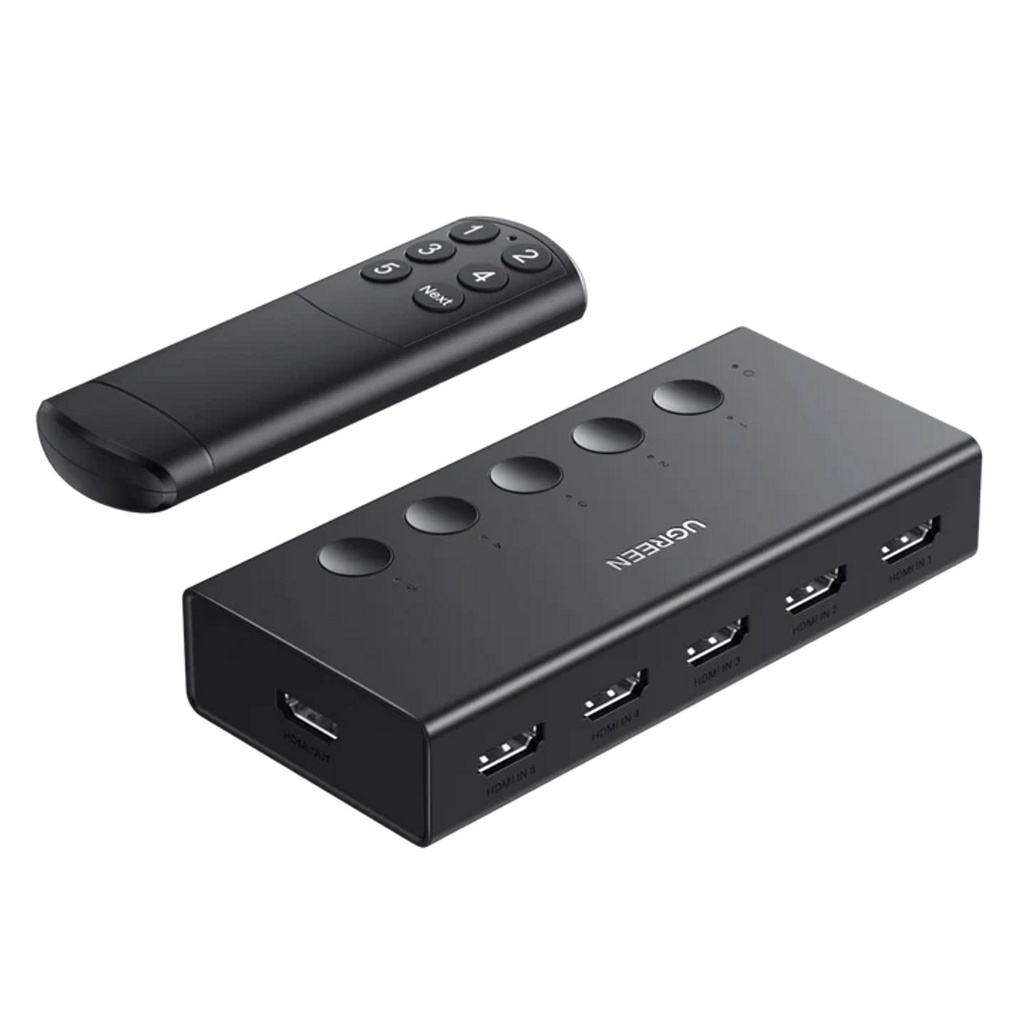

Ugreen 40205 HDMI 5×1 switcher provides a way to switch among multiple HDMI sources, like Laptop, HD-DVD, PS3, Xbox360 to a HDMI TV or display. It allows the switching of 5 inputs and maintains all signal components present within the encoded signal HDCP encryption. You could easily select from different programme sources via front panel push buttons or IR remote control without moving cables around.

Specification

1. Full HD 1080P;

2. Support 3D;

3. Support 12-bit per channel(36bit all channel) deep color;

4. Supports 250MHz/2.5Gbps per channel (7.5Gbps all channel);

5. Power adapter is included;

6. Switching: key-press-switching, IR remote control;

7. Size: 126*75*18mm.

Note

1. Suggest using HDMI 1.4 and HDMI 2.0 cable as input cable.

2. Suggest input HDMI cable less than or equal to 15ft, output HDMI cable less than or equal to 30ft.

3. There is a plastic film in the battery slot of the remote, please remove it firstly before using the remote.



Package Contents

Ugreen 40205 HDMI Switcher 5×1;
IR Remote ×1;
Power Adapter×1;
Mannual×1;
