Specifications
Features
32-bit decoding technology.
2500 Pixels CCD sensor.
Scan Speed: 250 scan/sec
Wave length: 590nm
Depth of Field: 5 ~ 25 cm
Width of Field: 15 cm (long distance max.)
Reading PCS: 0.45
Interfaces support (Keyboard Wedge, RS-232, USB)

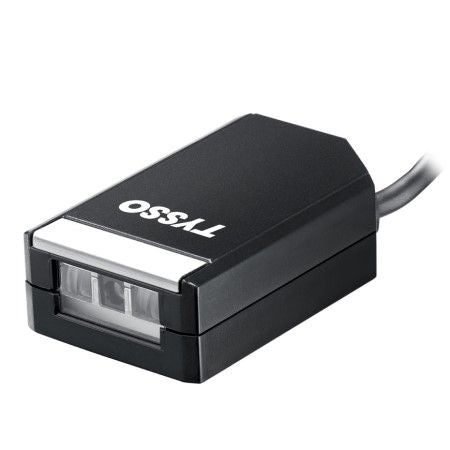

MODEL FCS-700
General
Scan Rate 250 scan/sec
Scanner Type 2500 Pixel CCD
Wavelength 590nm, Brilliant Yellow
Maximum Pitch -
Minimum Skew -
Minimum Barcode Width -
Depth of Field 5 ~ 25 cm (max.)
Width of Field 15 cm (long distance max.)
Contrast Ratio 0.45
Scan Patten Single scan line (trigger / continuous)
Resolution 0.1mm (4 mil) max
System Interface Keyboard Wedge / RS-232 / USB
Indicator Audio Indicator
Readable Bar Code Symbologies Code 39/32, Full ASCII Code 39, Code 128, Code 11, Interleaved 2/5, Industrial 2/5/IATA, Matrix 2/5, China Postage, Code93, MSI/PLESSEY, Codabar/NW7, EAN-8/JAN-13, UPC-A, EAN-13/JAN-13, ISBN/ISSN, Telepen, GS1 Databar
Electrical
Power Input 5VDC ± 5%
Others
Material ABS
Color Black
Shock Resistance 1 m drop onto concrete
Compliance CE, FCC
Laser Class -
Weight 90 g (with cable)
Dimension (W x H x L: mm) 34 x 17 x 55
Cable Length 1.8 m
Ambient Light 4500 lux (fluorescent)
Operating Temperature 0°C ~ 45°C
Operating Humidity -
Storage Temperature -20°C ~ 60°C
Storage Humidity 20% - 85% RH, non-condensing
