Specifications

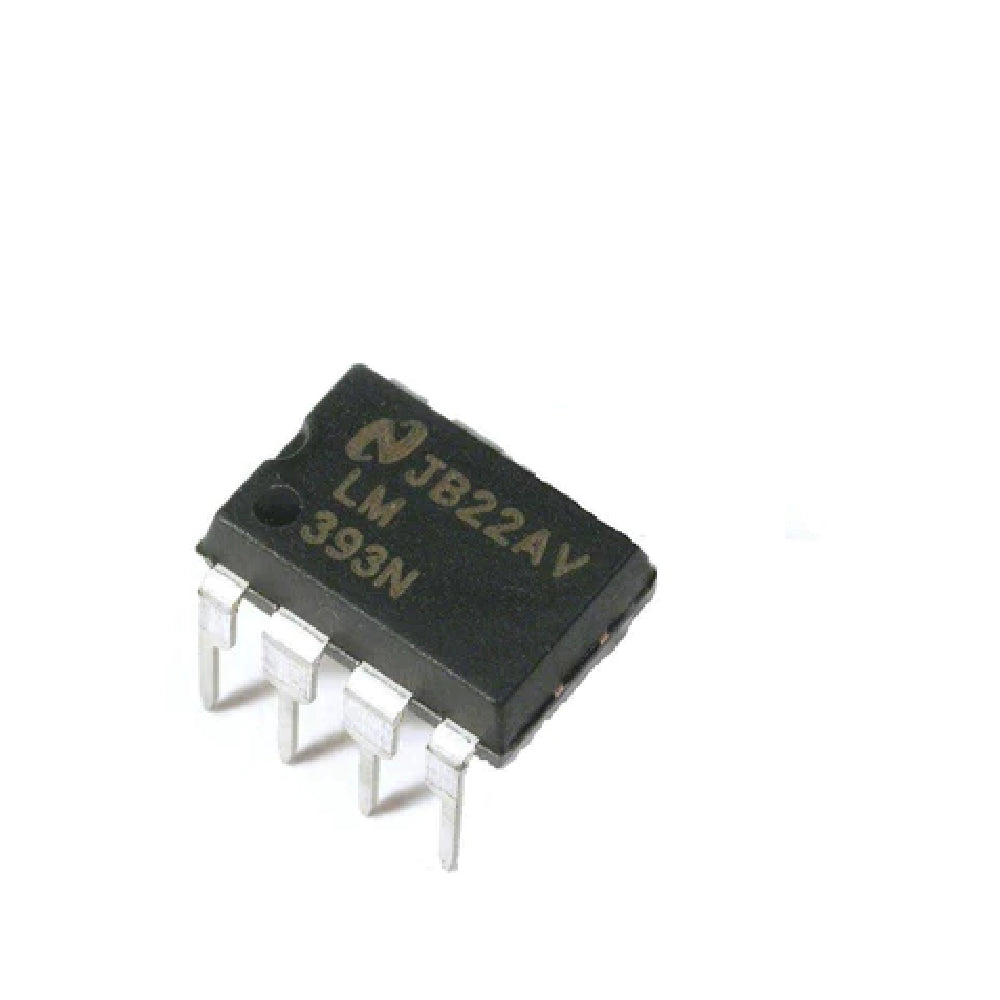

- Dual Comparators: Contains two independent comparators.
- Wide Voltage Range: Operates from a single supply (2V to 36V) or dual supplies, with inputs handling up to 36V without damage.
- Low Power: Very low supply current, independent of supply voltage magnitude.
- Open-Collector Outputs: Outputs can be tied together for wired-AND logic.
- Wide Input Range: Input common-mode voltage range includes the negative rail (ground) when operated from a single supply, a significant advantage.
- Interfacing: Directly interfaces with TTL and CMOS logic.
- Robustness: Suitable for automotive and industrial use due to its wide voltage range and stable performance.
Typical Applications:
- Voltage Sensing: Detecting if a voltage crosses a threshold.
- Oscillators & Timers: Creating relaxation oscillators or timing circuits.
- Window Comparators: Defining upper and lower voltage limits.
- Level Shifting: Translating logic levels.
- Data Acquisition: Simple analog-to-digital conversion elements.
