Description
Specifications
System parameters
- Processor High-Performance Embedded SOC Processor
- Operation system Embedded Linux Operation System
Display parameters

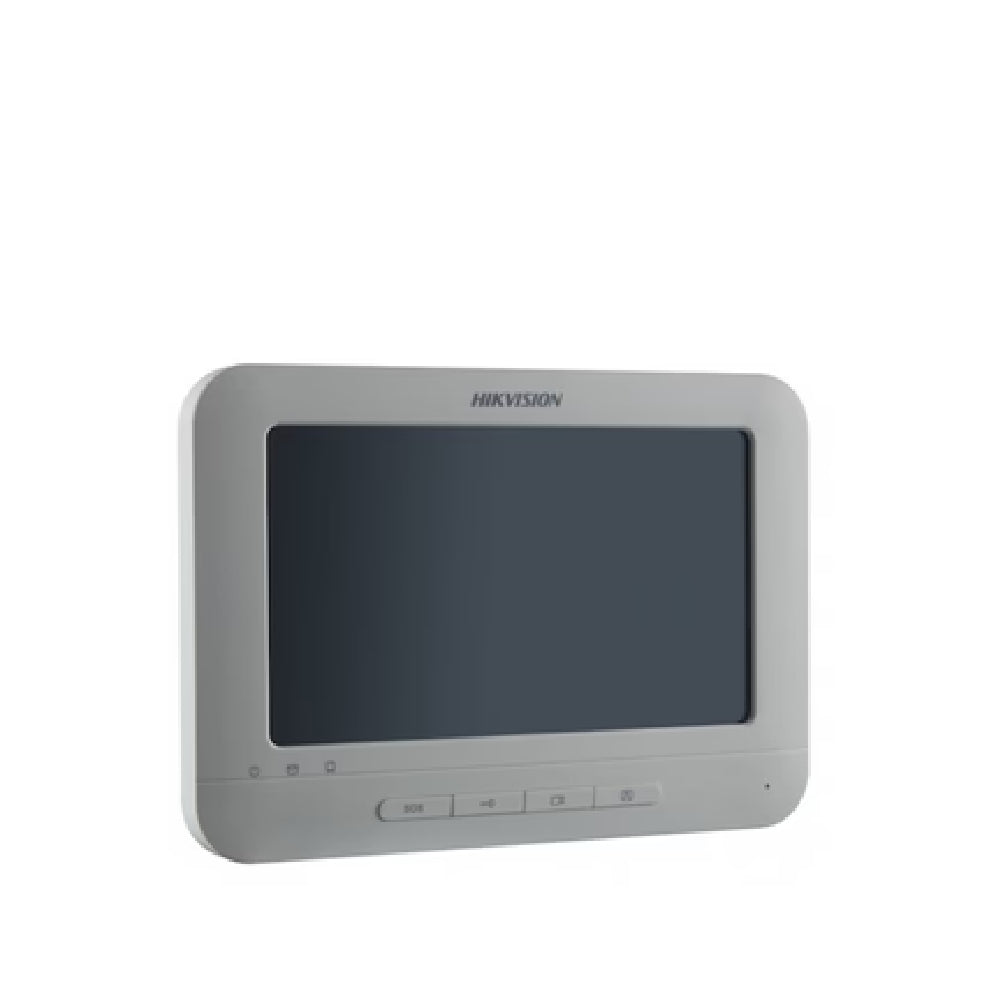

- Display screen 7-Inch Colorful TFT LCD
- Display resolution 800 x 480
- Operation method Capacitive Touch Screen, Physical Button
- Operation interface Flattened UI Operation Interface
Audio parameters
- Audio input Built-in Omnidirectional Microphone
- Audio output Built-in Loudspeaker
- Audio compression standard G.711 U
- Audio compression rate 64 Kbps
- Audio quality Noise Suppression and Echo Cancellation
Networkparameters
- Ethernet 10/100 Mbps Self-Adaptive Ethernet
- Network protocol TCP/IP, RTSP
Alarmparameters
- Alarm input 2-ch Alarm Input Sensor
Deviceinterfaces
- Network interface 1 RJ-45 10/100 Mbps Self-Adaptive Ethernet Interface
- RS-485 1 RS-485 Half-Duplex Port
- I/O output 1
General
- Memory 256 M
- Power supply 24 VDC, Power Over Network Cable (DS-KAD606, DS-KAD612)12 VDC
- Power consumption ≤10 W
- Working temperature -10° C to + 55° C (14° F to 131° F)
- Working humidity 10% to 90%
- Dimensions 217 mm x 142 mm x 26 mm (8.5" x 5.6" x 1.0")
- Certification FCC, IC, CE, C-TICK, ROHS, REACH, WEEE
