Specifications
| Category | Specification | Details |
| Voltage | Peak Repetitive Reverse Voltage ($V_{RRM}$) | 1000 V |
| RMS Reverse Voltage ($V_{R(RMS)}$) | 700 V | |
| Current | Average Forward Current ($I_F$) | 6.0 A (@ $T_A = 75$°C) |
| Non-Repetitive Peak Surge Current ($I_{FSM}$) | 400 A (8.3ms half-sine) | |
| Max Reverse Current ($I_R$) | 10 $\mu$A (@ 25°C) | |
| Electrical | Forward Voltage ($V_F$) | 0.9 V (Typical @ 6A) |
| Type | Standard Recovery | |

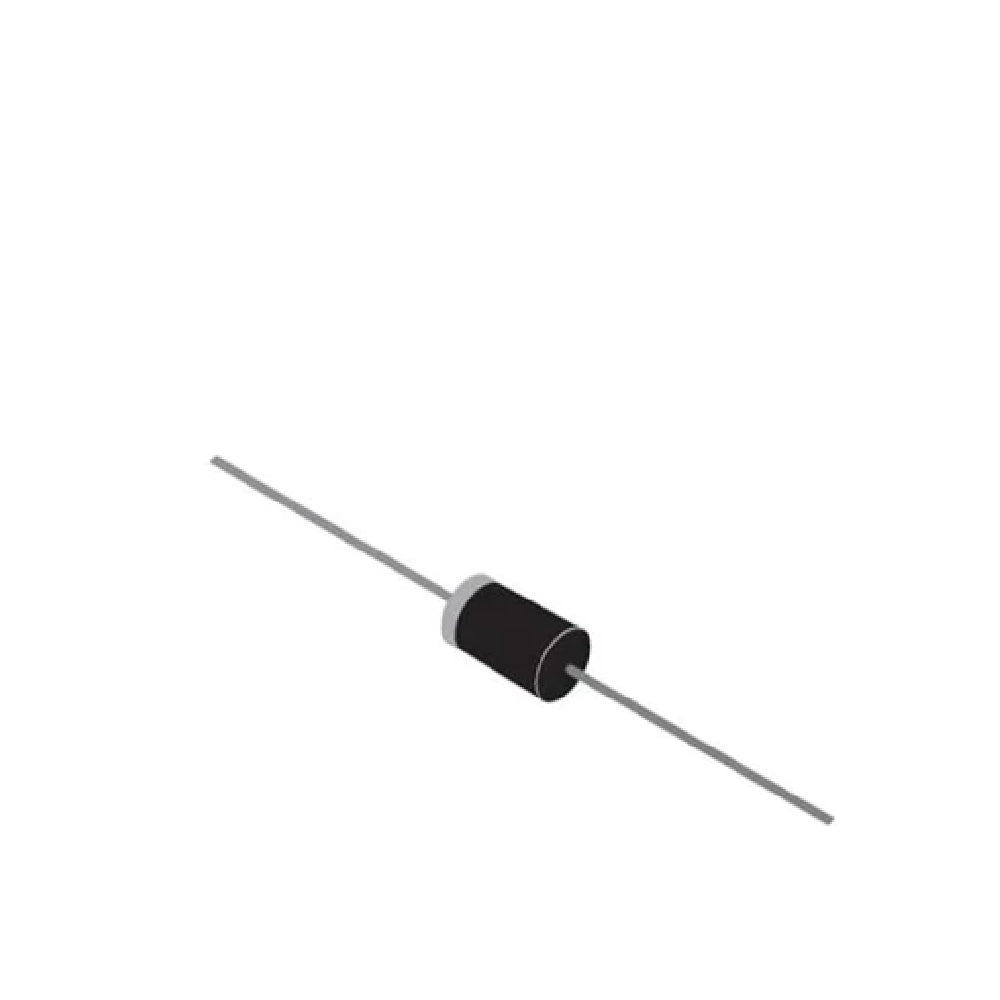

| Physical | Package / Case | R-6 (Axial Leaded) |
| Dimensions | 9.1 mm x 9.1 mm (Body) | |
| Weight | 2.1 g | |
| Environment | Operating Temperature Range | -65°C to +175°C |
