Specifications
Model

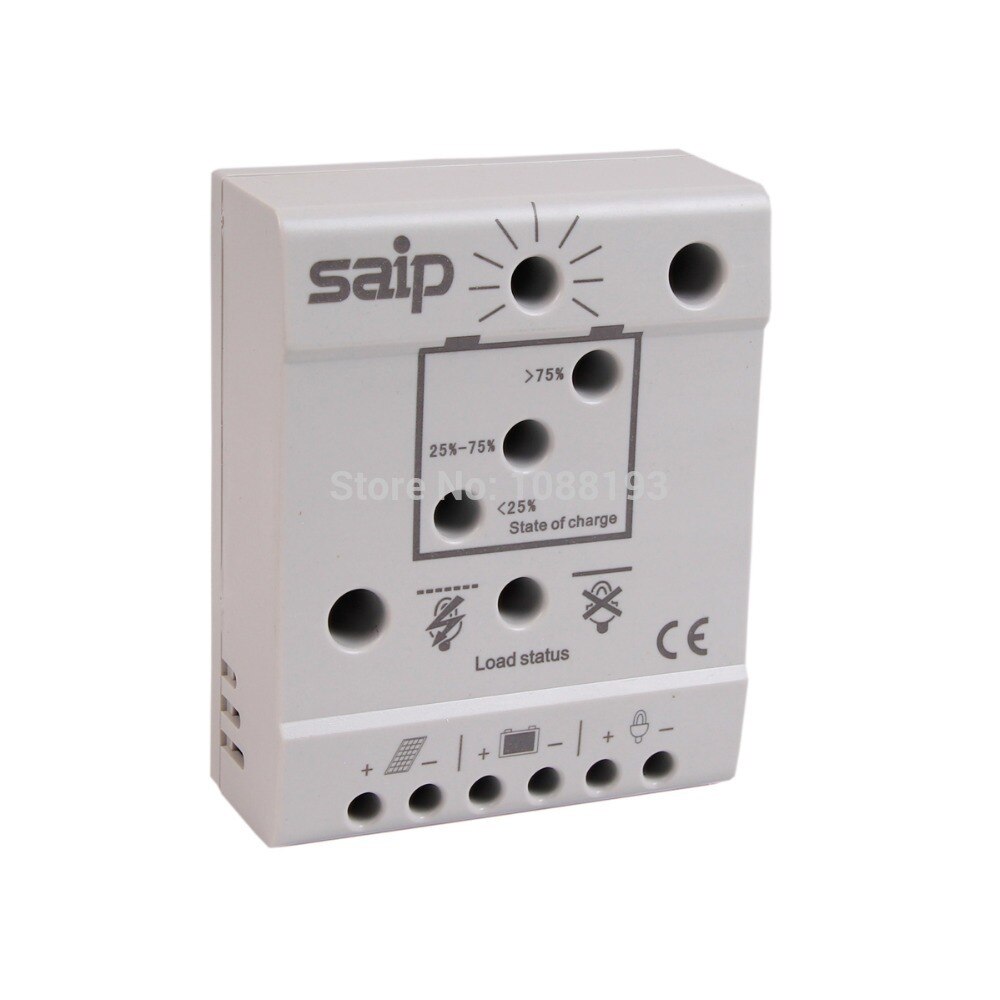

SML08Â
Max.module current: 8AÂ Â Â Â Â Â Â Â Â Â
Max.load current: 8AÂ Â Â Â Â Â Â Â Â Â
system voltage: 12/24V
self power consumption: <4mA
dimensions: ( W x H x D ) 80*100*32mm
nominal voltage: 12/24V, automatic recognition
boost voltage: 14.5/29.0V(25°C), 2H
equalization voltage: 14.8/29.6V(25°C), 2H
float voltage: 13.7/27.4V(25°C)
Low voltage disconnect function 11.4-11.9/22.8-23.8V,controlled by state of charge 11.0/22.0v, controlled by voltage
load reconnect voltage: 12.8/25.6v
temperature compensation: -4mV/cell*K
Max.solar panel current: 5/8/10/15/20a,according to model number
Max.load current: 5/8/10/15/20a,according to model number
Dimensions: 120 x 90 x 50(W x H x D )
Weight: 180g
Max.wrie size: 24mm^2
consumption: 4ma
ambient temperature range: -40 to + 50 °C
case protection: IP22
