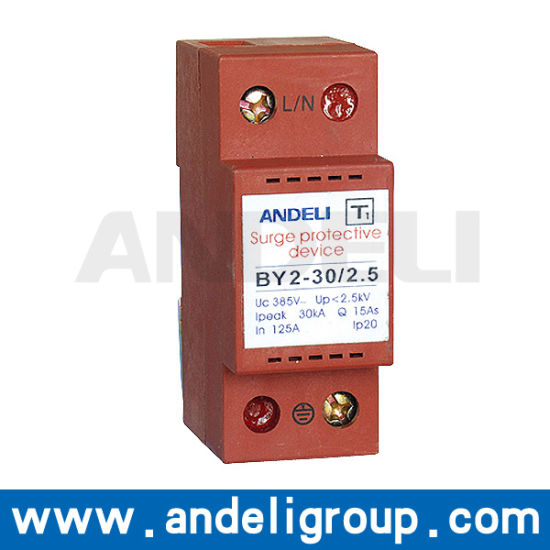

Description
Specifications
Maxi continuous operating voltage Uc~ : 385V AC
Impact voltage Uf : > 1.0kV
Insulation resistance Risol : >5M
Protection volatege level Up : < 2.5 kV
Response time ns : < 100 ns
Impulse current lpeak : 60kA
Nominal discharge current (8/20US) In : 200kA
Rating residual current Ip : 6.0kA/250V
Oprating voltage of protector fuse Ih : 250A
Protection level : IP20
