Description
Specifications

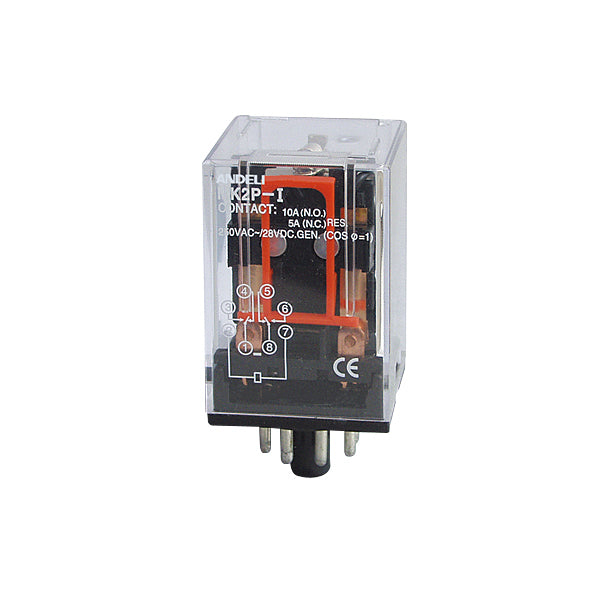

| Model number | MK2P series |
| Contact material | Silver alloy |
| Contact form | DPST-NO, DPST-NC, DPDT |
| Contact rating | 10A@28Vdc/240Vac |
| Rated coil power | 3.5Wac, 2Wdc |
| Rated coil voltage | AC/DC: 6, 12, 24, 36, 48, 110, 220V; AC380V |
| Dielectric strength | 1,500Vac, 50/60 Hz for 1 min between coil and contacts 1,200Vac, 50/60 Hz for 1 min between opening contacts |
| Pick-up voltage | DC types: 75% max; AC types: 80% max |
| Drop-out voltage | DC types: 10% min; AC types: 30% min |
| Operation voltage | 110% max |
| Contact resistance | 50mΩ max |
| Termination | 8 pins |
| Mounting | Quick connect |
| Matched socket | PF083A |
| Mechanical life | 1x107 operations min |
| Electrical life | 1x105 operations min |
| Insulation resistance | 100MΩ min. at 500 VDC |
| Operating temperature | -25 to 55 ℃ |
| Operating humidity | 35 to 85% RH, no condensation |
| External dimensions | 34.5x34.5x53 mm |
| Alias name | MK2P series power relay, electric relay, electrical relay |
