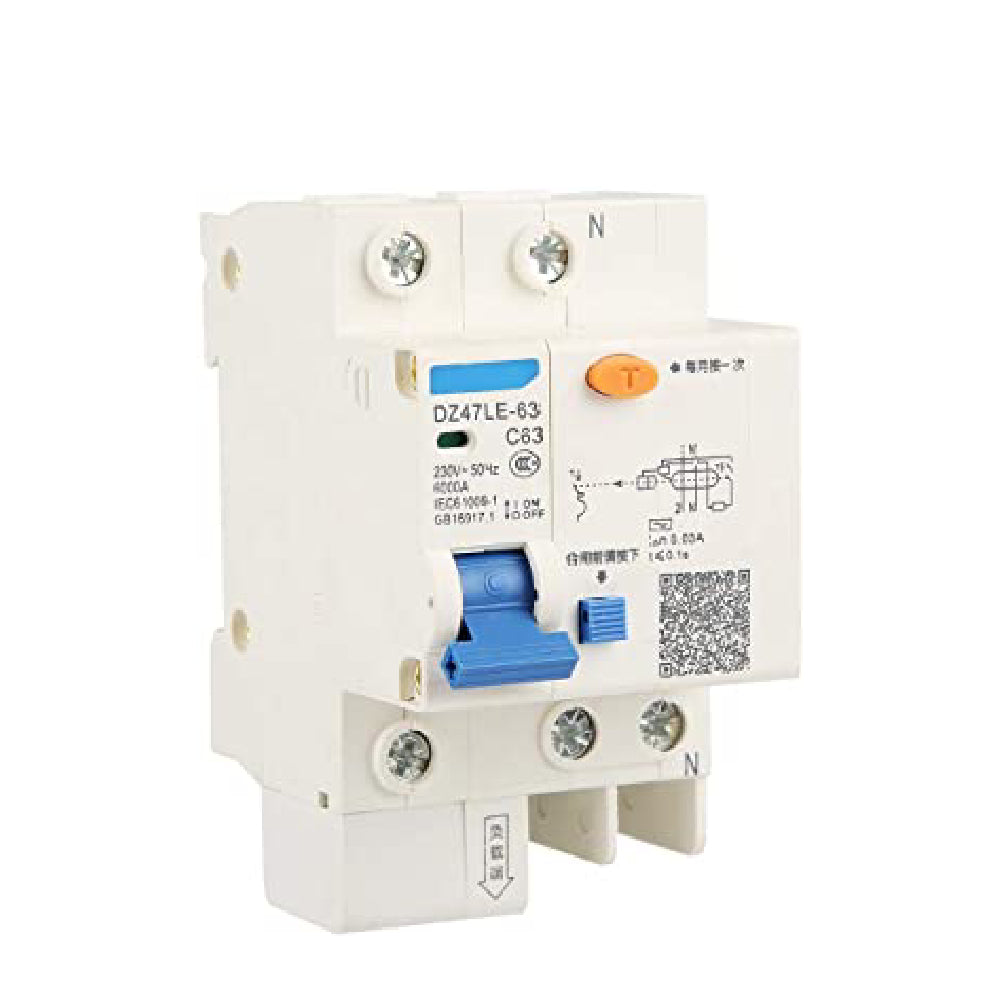

DZ47LE is used to protect the line and the motor from electrical leakage, overload and short circuit. It can be used for the infrequent switchover of the circuit under normal conditions. It conforms to IEC61009.
Application:
High breaking capacity circuit breaker is used for AC 50Hz or 60Hz, single pole 240V, 2, 3, 4, poles 440V, for protecting the circuit which overload and short circuit may take place. It can be used in lighting and electric motor distribution system. Meantime it is applicable to an unfrequented switch the electric apparatus and lighting and circuit under normal condition. Breaking capacity is up to standard of 60898 10KA.
Specification:
Rated Current(A): 1, 2, 4, 6, 10, 16, 20, 25, 32, 40, 50, 63
Pole Number(P): 1, 2, 3, 4
Rated Voltage(V): 240/440
Breaking Capacity: 6kA(TGM65N-H type may be up to 10kA)
Characteristic Curve: C type, B type, D type
Certification: CE and CB
