Specifications
Model number

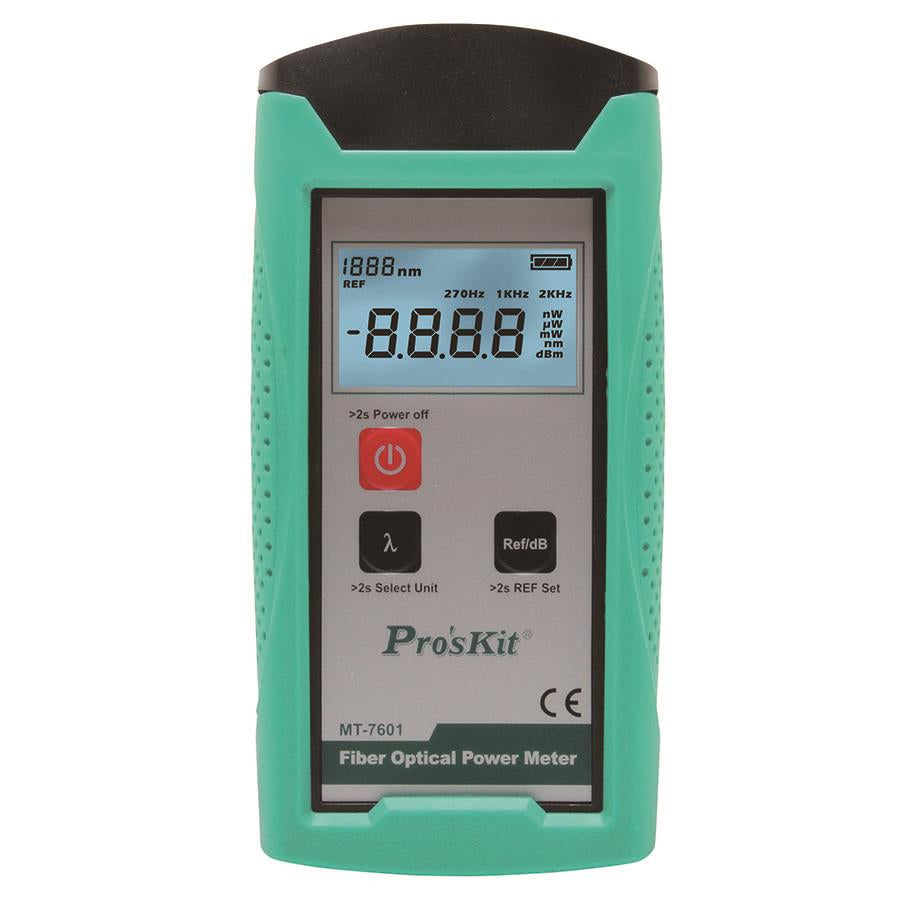

MT-7601
Detector Type
InGaAs
Optical Connector
FC/SC/ST & 2.5mm Universal
Calibrated Wavelengths
850?1300?1310?1490?1550?1625
Measurement Range
+6 ~ -70 dBm
Accuracy
± 0.2 dB
Power Measurement Linearity
±2.0%
Display Resolution
+6?-60dBm?0.01 dB , -60?-70dBm?0.1 dB
Power Display Units
dBm?mW?μW?nW
Reference Comparison Value
Yes
Modulation Detection
270Hz?1KHz?2KHz
(850?1300?1310?1490?1550?1625)
Operation Voice Prompts
Yes
Backlight
LED
Automatic Power Off
10 minutes (Can be cancelled)
Low Battery Warning
Low battery energy
Body Protected
Yes
Battery Life
> 160 hours
Operating Temperature
-10?+60??<90%
Storage Temperature
-20?+70??<90%
Power source
AA/LR6 1.5V×2 pcs
Size
165 x 80 X 35 (mm)
Weight
180g (w/o battery)
Optional Accessory
LC adaptor (5MT-7601-LC)
