Specifications
Dimensions
| Body Depth - Relay | 1.14 in |
| Body Height - Relay | 1.42 in |
| Overall Height - Relay | 1.66 in |
| Body Width - Relay | 0.89 in |
| Body Height | 1.73 in |
| Body Width | 0.88 in |
| Body Depth | 1.41 in |
| Overall Depth | 1.66 in |
| Mounting Hole Diameter | 1.2 in |
Details

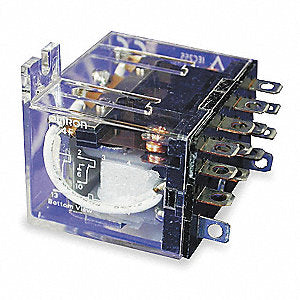

| Item | Flange Mount Relay |
| Coil Volts | 24V AC |
| AC Contact Rating - Relay | 3A @ 240V |
| DC Contact Rating - Relay | 3A @ 24V |
| Number of Pins - Relay | 14 |
| Contact Form - Relay | 4PDT |
| Mounting - Relay | Top Flange |
| Power Consumption - Relay | 1.2 VA |
| Contact Material | Gold Clad Silver Alloy |
| Contact Rating | 3A @ 220VAC/24VDC |
| Electrical Connection | Plug-In Terminal |
| Pins | 14 |
| Item - Relay | Flange Mount Relay |
| Standards | CE Certified, CSA Certified, TUV Certified, UL Listed |
| HP @ 120V | 1/6 hp |
| HP @ 240V | 1/6 hp |
| Mounting | Top |
| Status Indicator | None |
| Contact Form | 4PDT |
| Features | General Purpose Relays, Standard, Unsealed |
| Motor Rated | Yes |
| Frequency | 50/60 Hz |
| Coil Voltage | 24V AC |
| Operating Current | 0.8 A at 220V AC (Inductive Load), 1.5 A at 24V DC (Inductive Load), 3 A at 220V AC (Resistive Load), 3 A at 24V DC (Resistive Load) |
| Current Rating | 3 A |
| Minimum Operating Temperature | -67 Degrees F |
| Horsepower @ 120V AC | 1/10 hp |
| Contact Rating (DC) | 1.5 A @ 24V, 3 A @ 24V |
| Coil Resistance | 180 ohm |
| Maximum Switching Voltage | 125V AC/DC, 250V AC/DC |
| Number of Pins | 14 |
| Contact Rating (AC) | 0.8 A @ 240V, 3 A @ 240V |
| Power Consumption | 0.9 VA, 1.3 VA |
| Series | MY Series |
| Weight | 1.23 oz |
| Response Time | 20 msec |
| Electrical Operating Durability | 200,000 |
| Maximum Operating Temperature | 158 Degrees F |
| Mechanical Operating Durability | 50,000,000 |
| Insulation Resistance | 100 megaohm |
| Maximum Switching Capacity | 1.3 VA |
| Sealing | Enclosed |
| Horsepower @ 240V AC | 1/6 hp |
| Dielectric Strength | 1,000V AC Between Contacts of Same Polarity, 2,000V AC Between Coil and Contact, 2,000V AC Between Contacts of Different Polarity |
| Mounting Style | Top Flange |
| Base Shape | Square |
