Description
Specifications
Specifications
| Parameter | Specification |
|---|---|

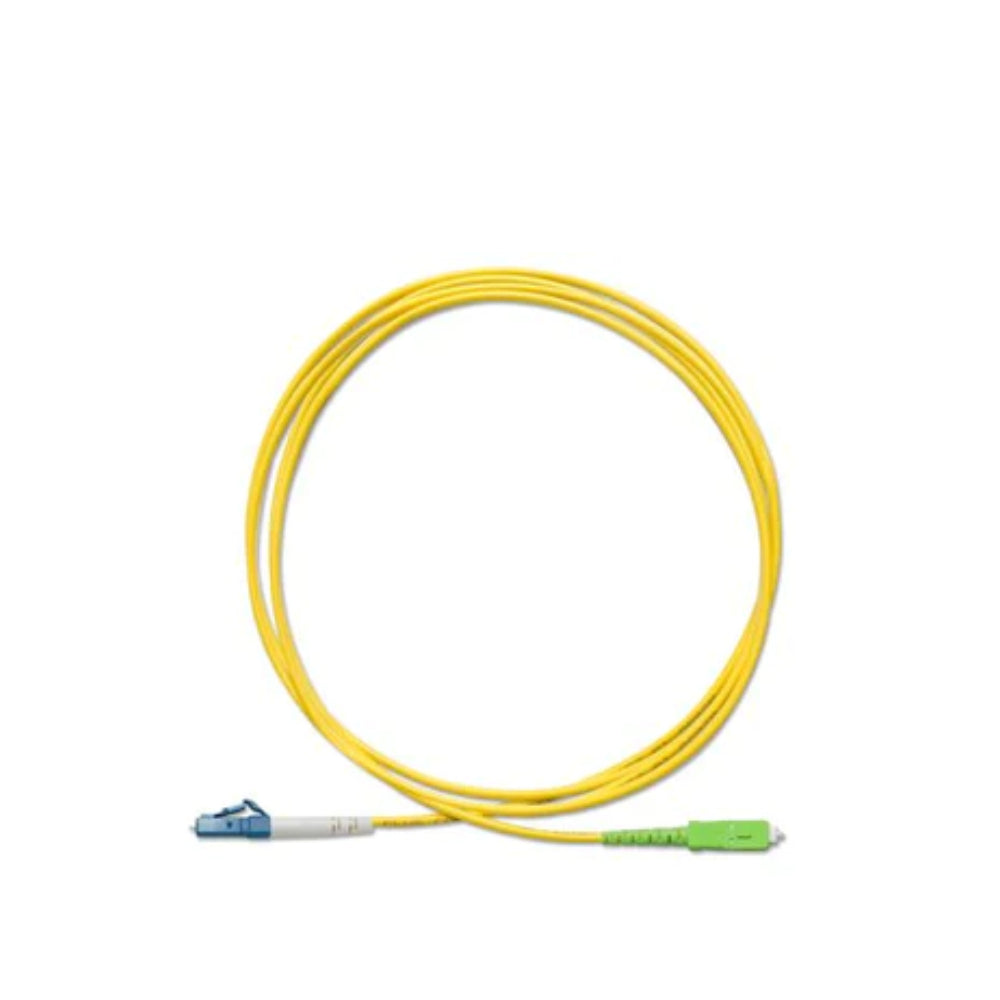

| Connector A | LC UPC Simplex |
| Connector B | SC APC Simplex |
| Fiber Count | 1 Fiber |
| Fiber Grade | G.657.A1 (Compatible with G.652.D) |
| Fiber Mode | OS2 9/125μm |
| Wavelength | 1310/1550nm |
| RoHS Compliancy Status | Compliant |
| Cable Type | Tight-Buffered |
| Cable Outside Diametre (OD) | 2.0mm |
| Flame Rating | Riser (OFNR) |
| Min. Bend Radius (Optical Fiber) | 10mm |
| Min. Bend Radius (Fiber Cable) | 10/5D (Dynamic/Static) |
| Connector Durability | 1000 times |
| Tensile Strength | 60/100N (Long/Short Term) |
| Insertion Loss | ≤0.3dB |
| Return Loss | UPC≥50dB, APC≥60dB |
| Attenuation at 1310nm | 0.4dB/km |
| Attenuation at 1550nm | 0.3dB/km |
| Operating Temperature | -10 to 70°C (14 to 158℉) |
| Storage Temperature | -20 to 70°C (-4 to 158℉) |
