Description
Specifications

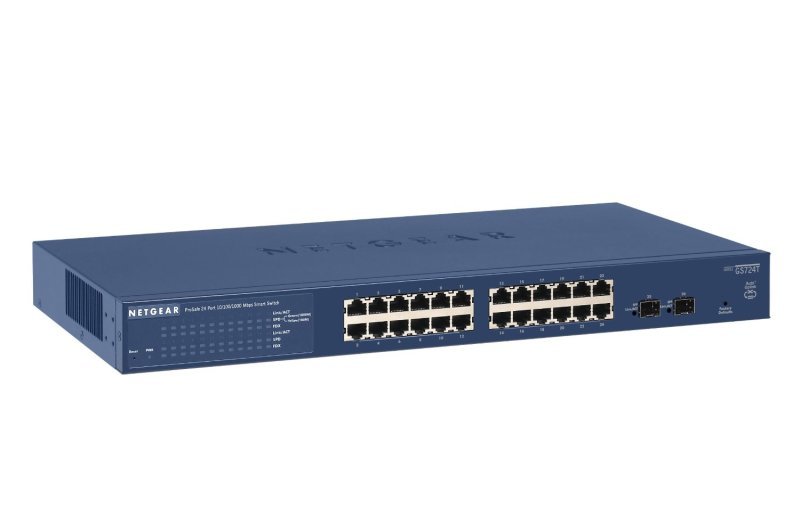

Device Type SwitchÂ
24 ports
L3 Lite - Managed
Capacity
Virtual interfaces (VLANs): 256 ¦ ACL entries: 100 ¦ Static routes: 32 ¦ Layer 2 multicast groups: 512 ¦ ARP entries: 512 ¦ Priority queues per port: 8
Routing Protocol IGMPv2, IGMP, IGMPv3, MLDv2, MLD
Remote Management
Protocol SNMP 1, SNMP 2, RMON 1, RMON 2, RMON 3, RMON 9, SNMP 3, HTTP, HTTPS, TFTP
Features
Flow control, ARP support, VLAN support, IGMP snooping, Syslog support, DoS attack prevention, port mirroring, DiffServ support, Weighted Round Robin (WRR) queuing, store and forward, Broadcast Storm Control, full duplex mode, Multicast Storm Control, Unicast Storm Control, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Access Control List (ACL) support, MLD snooping, Dynamic ARP Inspection (DAI), LLDP support, DHCP client, Energy Efficient Ethernet, Strict Priority Queuing (SPQ), static routing, 802.1x authentication, Type of Service (ToS), VoIP support, DiffServ Code Point (DSCP) support, cable test, administrator's password, ARP inspection
Compliant Standards
IEEE 802.3, IEEE 802.3u, IEEE 802.3i, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3az
Status Indicators
Port transmission speed, link/activity
Enclosure Type Desktop, rack-mountable 1U
Performance Bandwidth: 52 Gbps
Subtype Gigabit Ethernet
Ports 24 x 10/100/1000 + 2 x Gigabit SFP
MAC Address Table Size 16K entries
Jumbo Frame Support 9KB
Encryption Algorithm SSL, TLS 1.0
Authentication Method RADIUS, TACACS+
Weight: 2.74kg
