Description
Specifications

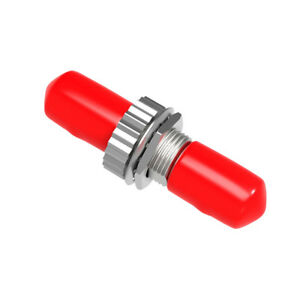

ST to ST Simplex Fiber Optic Adapter
Singlemode | UPC | Metal Housing | Silver | Without Flange
Product Description
The ST to ST Simplex Fiber Optic Adapter (also known as a fiber optic coupler) is designed to precisely connect two ST-terminated fiber optic cables. It provides a reliable and efficient solution for high-density and small form-factor fiber optic networks.
This adapter enables fast, accurate, and stable field connections between single-fiber ST connectors or patch cords. Featuring a zirconia ceramic alignment sleeve, it ensures precise core alignment, low insertion loss, and excellent performance in singlemode UPC applications. The durable metal housing offers long-term reliability in demanding network environments.
Key Features
- High dimensional precision for accurate fiber alignment
- Fast and easy ST-to-ST connection
- Lightweight yet durable metal housing
- Zirconia ceramic alignment sleeve for high-performance singlemode transmission
- High wear resistance and long service life
- Excellent repeatability and stability
- RoHS compliant
Technical Specifications
| Parameter | Specification |
|---|---|
| Connector Type | ST to ST |
| Body Style | Simplex |
| Fiber Mode | Singlemode |
| Polish Type | UPC |
| Insertion Loss | ≤ 0.2 dB |
| Mating Durability | ≥ 1000 insertions |
| Alignment Sleeve Material | Zirconia Ceramic |
| Housing Material | Metal |
| Flange | No |
| Color | Silver |
| Compliance | RoHS Compliant |
Environmental Specifications
- Operating Temperature: -20°C to +70°C
- Storage Temperature: -40°C to +85°C
- Humidity: Up to 95% RH
Applications
- Telecommunications networks
- CATV systems
- LAN / MAN / WAN networks
- Data processing networks
- Cable television
- Fiber-To-The-Home (FTTH)
- Premise distribution systems
- Central office and remote hubs
