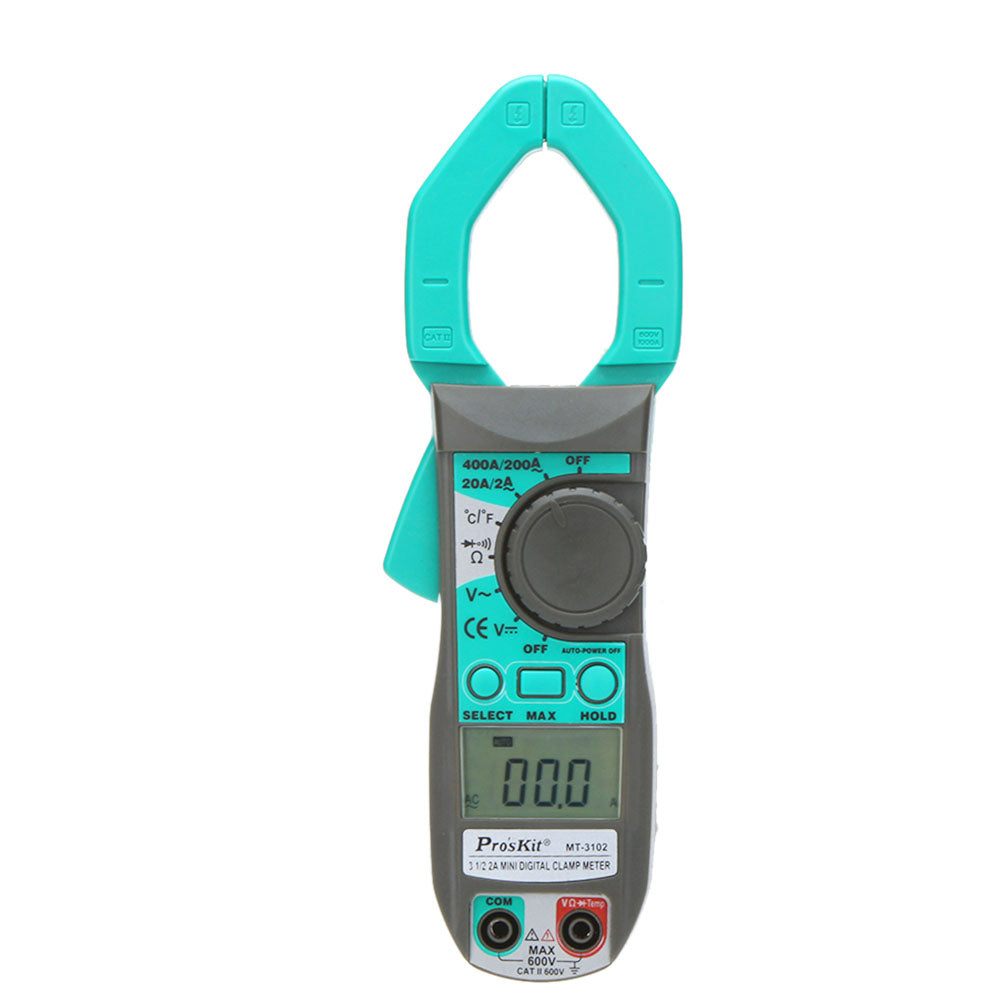

Proskit MT-3102 3-1/2 2A Mini Digital Clamp Meter
AC current 2A. Temperature measurement
3 1/2 digits 1999 counts.
0.8% best accuracy.
Auto range.
Portable and simple one-hand operation.
Extra function: Maximum value hold, data hold, auto power off, low battery indication.
Max. jaw opening: max. 30mm.
Digits 3 1/2 digits 1999 counts
Accuracy 0.8% best accuracy
DCV 200mV ±(0.8%+5d), 2/20/200V ±(0.8%+3d),600V ±(1.0%+5d)
ACV 2/20/200V ±(1.2%+5d),600V ±(1.5%+5d)
ACA 2A ±(3.0%+15d) ≤ 0.4A ±(4.0%+20d),
20A ±(2.0%+10d) ≤ 0.4A ±(3.0%+15d),
200/400A ± (2.0%+5d)
Resistance 200Ω ±(1.2%+5d), 2k/20k/200kΩ ±(1.0%+3d), 2MΩ
±(1.2%+5d), 20MΩ ±(1.5%+5d)
Temperature -40~0˚C ±(3.0%+4d), 0~400˚C ±(1.0%+3d),
400~1000˚C ±(2.0%+10d)
-40~32˚F ±(3.0%+8d), 32~752˚F ±(1.0%+6d),
752~1832˚F ±(2.0%+18d)
Extra function Maximum value hold, data hold, auto power off,
low battery indication
Power Source AAA(1.5V) x 3 pcs (Not included)
Size 203 x 68 x 33 mm
Accessories Test lead and thermocouple probe
