Specifications

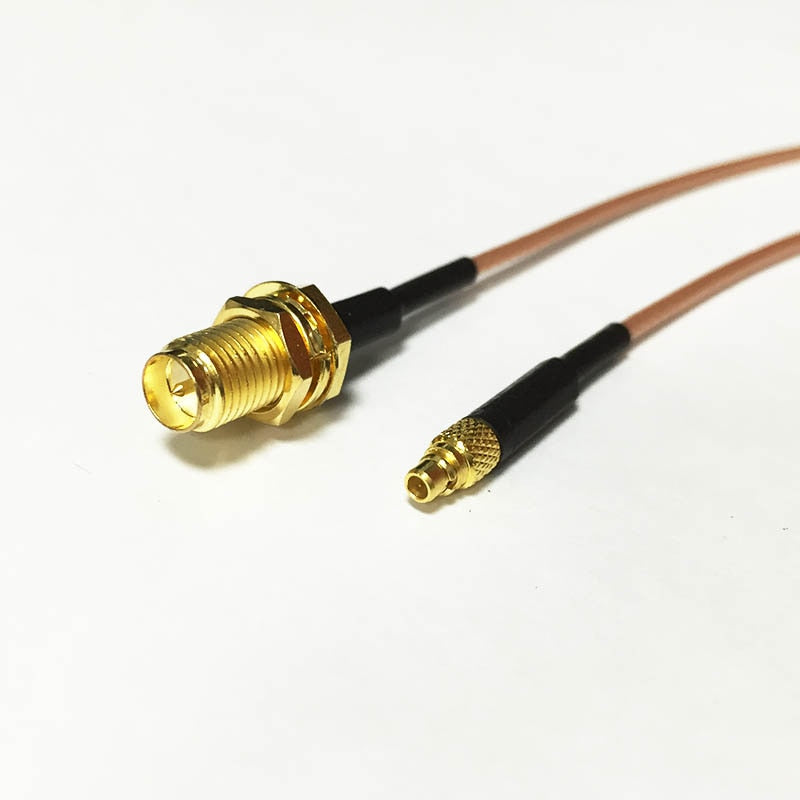

| Product Type | RF Coaxial Pigtail Cable Assembly |
| Connector A | MMCX Male Straight Plug [1.1] |
| Connector B | RP-SMA Female Bulkhead Jack (internal pin, external threads) [1.1, 1.2] |
| Cable Type | RG178 Coaxial Cable [1.1, 1.2] |
| Cable Length | 15 cm (approx. 6 inches) [1.1, 1.2] |
| Impedance | 50 Ohm [1.6, 1.10] |
| Frequency Range | DC to 6 GHz [1.11] |
| Material | Gold-plated Brass (Connectors) [1.1]; PTFE, FEP (Cable Insulation) |
| Applications | Wi-Fi, WLAN, GPS, IoT devices, RFID [1.6] |
