Specifications
| Category | Specification |
|---|---|

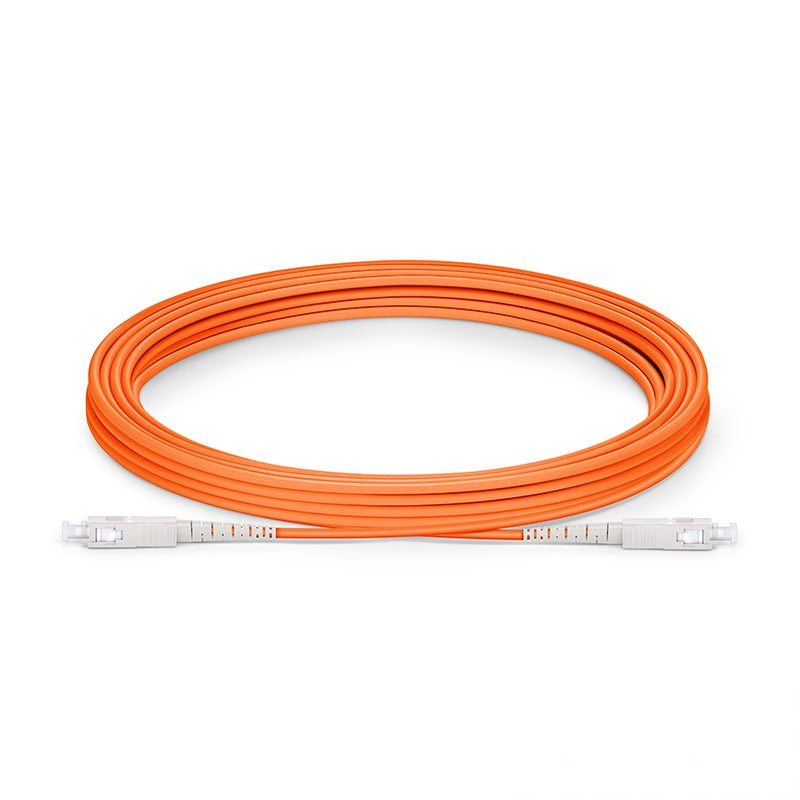

| Product Name | Fiber Optic Patch Cord |
| Brand | W&T |
| Fiber Mode | Multimode |
| Fiber Specification | 50/125 µm or 62.5/125 µm (variant dependent) |
| Connector Type (End A) | SC / UPC |
| Connector Type (End B) | SC / UPC |
| Polish Type | UPC (Ultra Physical Contact) |
| Cable Type | Simplex |
| Cable Length | 2 meters |
| Jacket Material | PVC or LSZH (batch dependent) |
| Jacket Color | Orange (typical for multimode) |
| Outer Diameter | ~2.0 mm |
| Insertion Loss | ≤ 0.3 dB (typical) |
| Return Loss | ≥ 35 dB (UPC, multimode typical) |
| Operating Temperature | −20 °C to +70 °C |
| Application | LAN / data center fiber patching |
| Typical Use | Switches, patch panels, transceivers |
| Installation Environment | Indoor |
| Compliance | IEC / TIA fiber standards |
