Description
Specifications

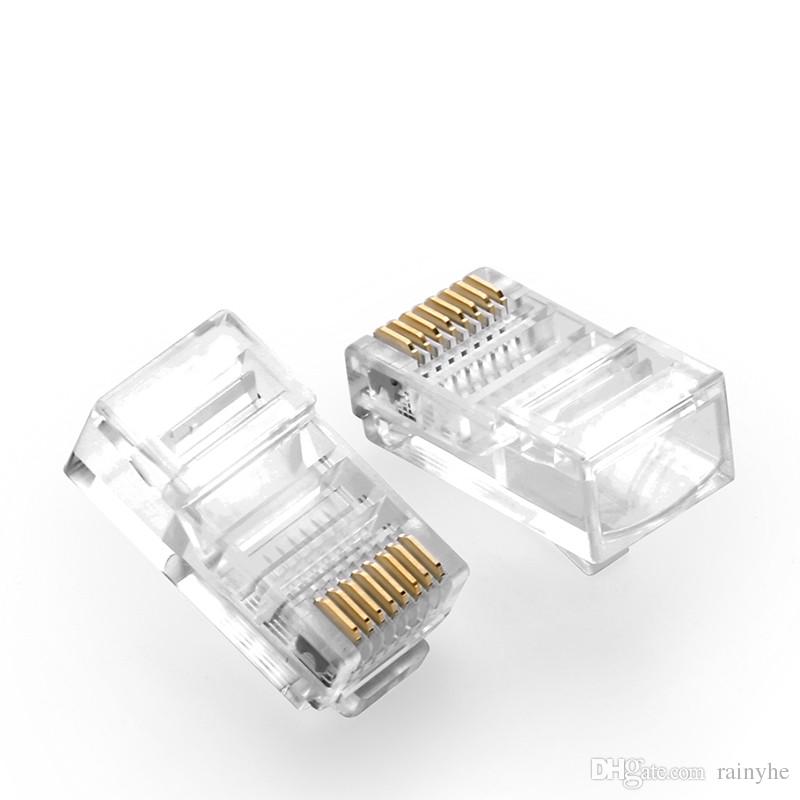

RJ45 CAT 5/ 8 PINJack
Current Voltage - 1.5AMP
Voltage Rating - 12.5VAC
Insulation Resistance - 500MΩ Min
Withstanding Voltage - ac1000V RMS 50Hz or 60Hz 1Min
Contact Resistance - 20Ω Max
Cable to Plug tensile Strength - 7.7KG Min
Durability - 750 Mating Cycles Min
Housing - Polycarbonate (PC) ul 94-0 or UL 94V-2
Contact - Phosphor Bronze. Hard plated over nickle shielding
0.25mm thickness copper alloy with tin plate
Working Temperature - -40°C to 70°C
