Description
Specifications

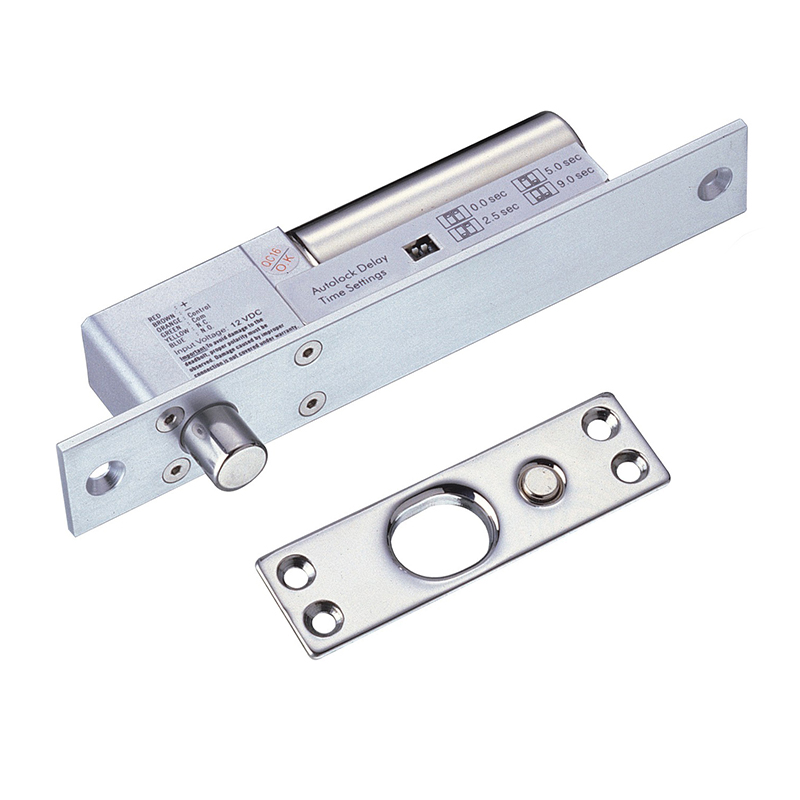

- Model: SL-100A
- Built-in door open or door close state detection output point (250mA: N.C./ N.O.).
- Special wearable design. Mechanic life of more than 1,000,000 times.
- Fail-safe type and MOV surge protection.
- Micro computer door position detection and current control to prevent error action and lower the lock's temperature.
- Stainless steel bolt is able to sustain more than 1200 kg of shear force.
- Suitable for all types of 180° door.
- Door lock delay time: 0/ 2.5/ 5/ 9 seconds available to set.
- Built-in photo couplets door open push button input contact. Door will lock again automatically when door is not open within 5 seconds.
- Operation temperature: 0~90℃ ; Humidity: 85%Rh max.
Dimensions:
- Body: 200mm(L) x 32mm(W) x 42mm(D)
- Strike plate : 90mm(L) x 26mm(W) x 2.5mm(D)
- Bolt : 16mm(Throw) x 15.5mm(Diameter)
- Power Supply: DC12V
- Weight: 860g
