Specifications
Specifications:

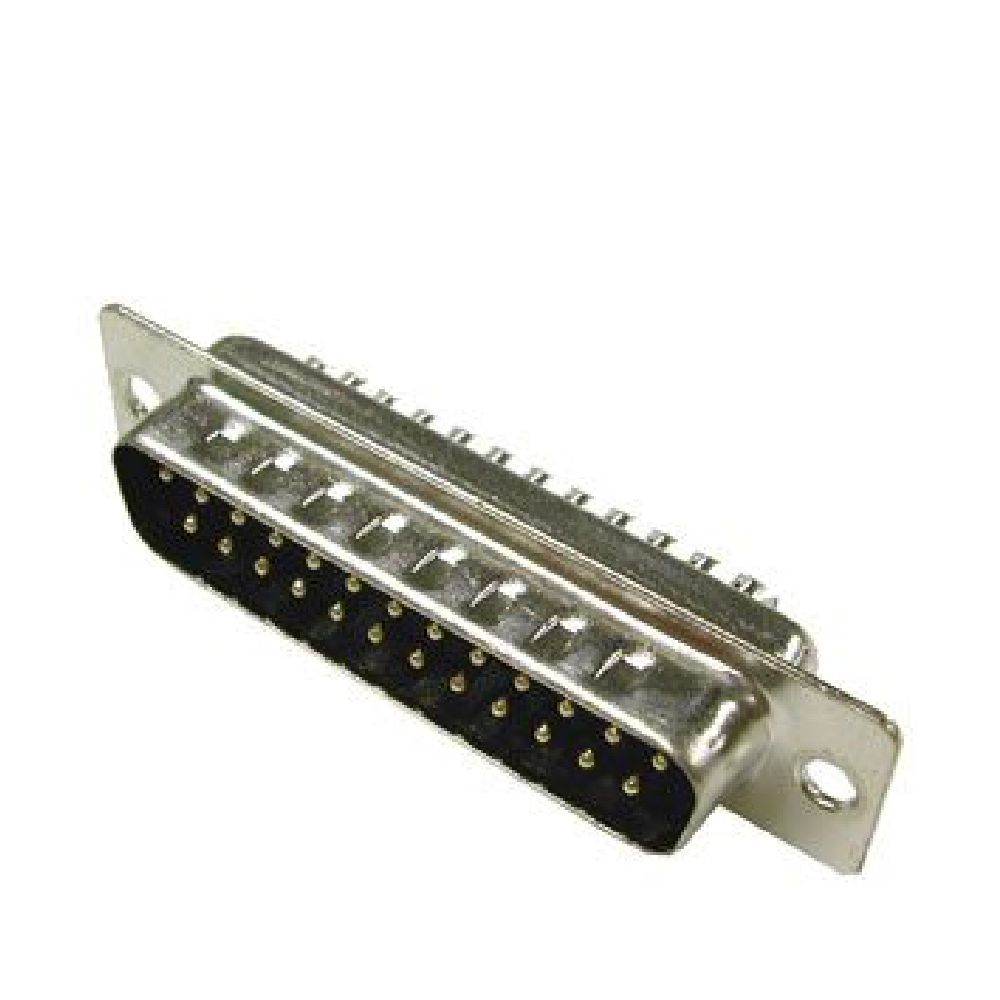

- Model Number: WT-5010-25M
- Brand: W&T
- Connector Type: DB25 Male (Plug), 2-Row
- Termination Type: Solder Cup (suitable for wire assembly)
- Shell Material: Nickel-plated steel
- Contact Material: Copper
- Operating Voltage: Rated up to 300V AC/DC
- Current Rating: Typically 5A per contact
- Insulation Resistance: 1000 MΩ min
- Operating Temperature: -55°C to 125°C
