Key Specifications & Features

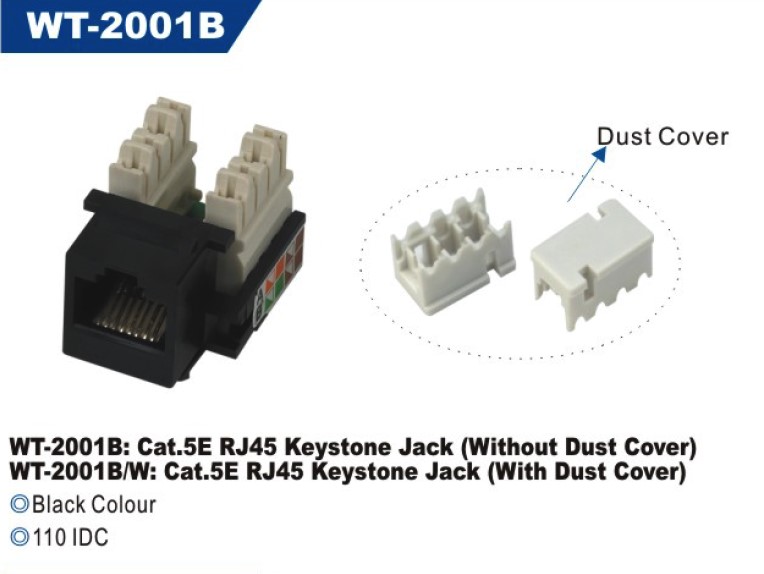

- Category: Cat5e (Category 5 Enhanced)
- Type: RJ45 8P8C Female to 110 Punch Down
- Wiring Standard: Supports Dual T568A and T568B wiring
- IDC Terminal: 110 Type, compatible with 22-26 AWG solid wire
- Durability: High-impact, UL94V-0 thermoplastic housing
- Contacts: Phosphor Bronze with 50 micro-inch gold plating
- Features: Includes dust covers; designed for snap-in mounting in patch panels or wall plates
- Performance: Meets ANSI/TIA/EIA-568-B.2 standard
Electrical/Mechanical Specs (Typical for this series)
- Current Rating: 1.5 Amps
- Insulation Resistance: 500M ohms (min.)
- Contact Resistance: 20m ohms (max.)
- Operating Temperature: -10°C to 60°C
- Insertion Life: 750 mating cycles
