Specifications
Technical Specifications & Features:
- Purpose: Eliminates interference (noise/static) on telephone lines caused by ADSL modem data transmission.
- Ports: Typically features one RJ11 input (from wall) and two RJ11 outputs: one for a Telephone/Fax (filtered) and one for the Modem/Router (unfiltered/unrestricted).
- Compatibility: Supports ADSL, ADSL2, ADSL2+, and VDSL environments.
- Insertion Loss (Voice Band): <0.3 dB to 1.0 dB @ 1 kHz.
- Attenuation (DSL Band): >35dB-55dB (30kHz to 2.2MHz).
- DC Resistance: <25Ω - 40Ω.
- Design: Compact ABS housing, suitable for home or business use.
Application:

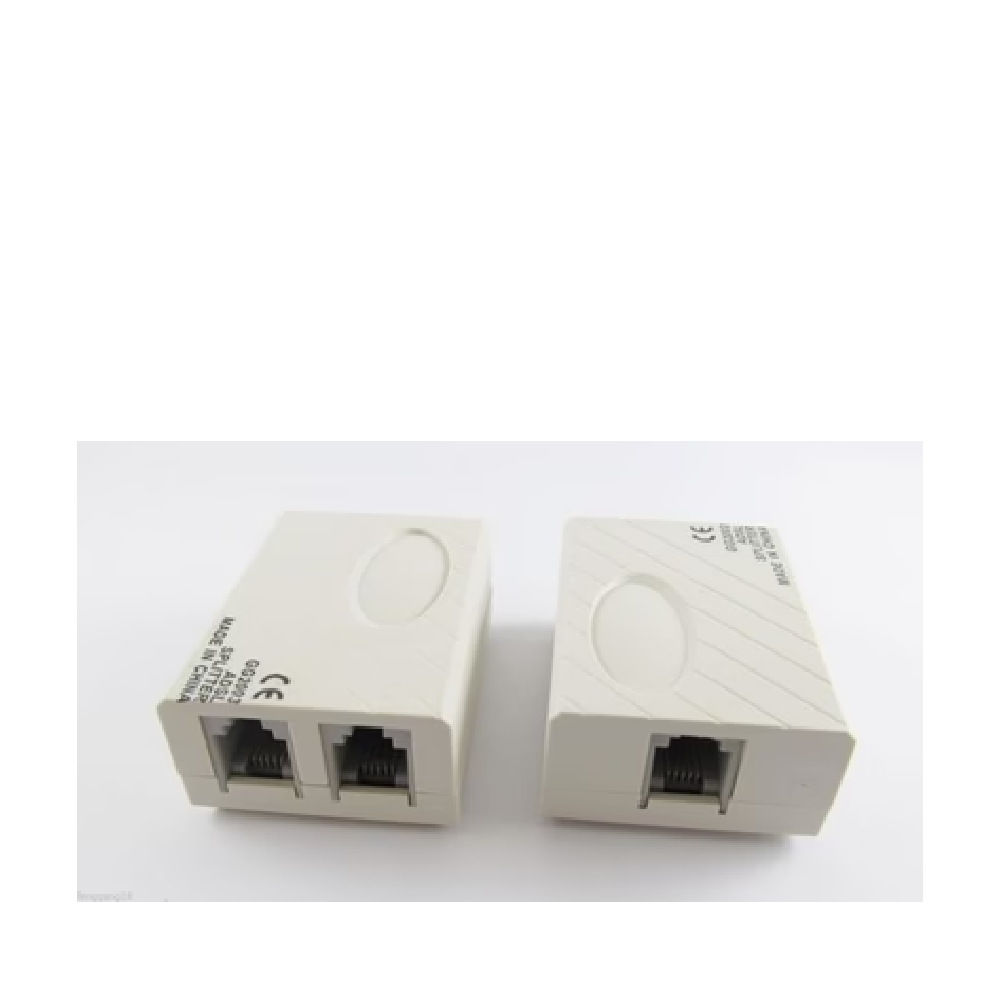

The EG-2100 is used to plug into a wall jack to allow the simultaneous operation of an ADSL modem and a telephone/fax machine.
